BOCO RC - Lil Spinner - 16.8v 471ozin 25T Servo

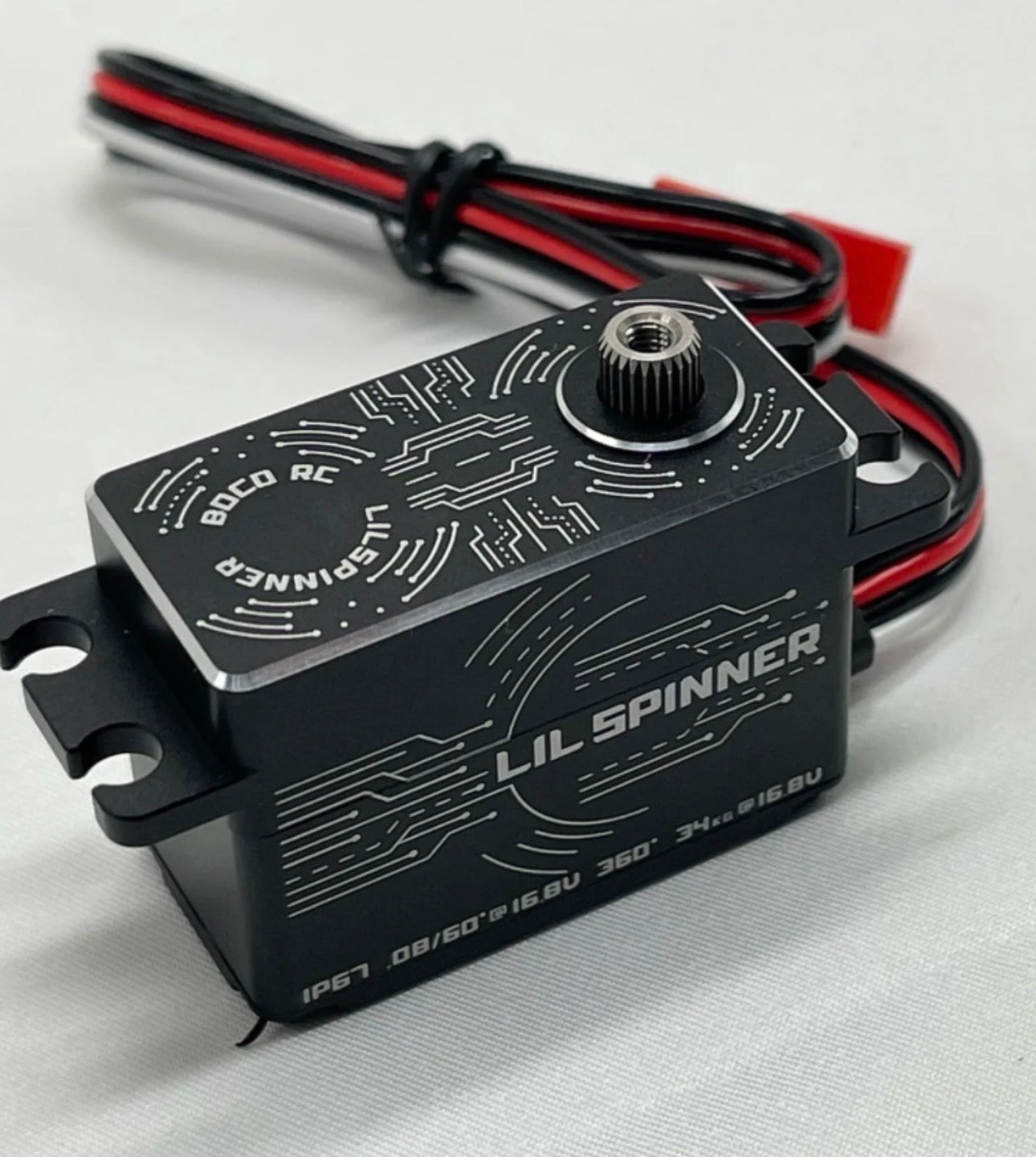

BOCO RC Lil Spinner Low Profile Direct Power Servo.

Small, sexy, and quick.

When designing The Lil Spinner I had lightweight rigs and high speed in mind - itll wiggle real good on 4S or hop a low rider pretty quick. Not suggested for 2.2" or heavy rigs.

As with other BOCO RC products longevity and reliability are key features.  Stainless steel gears, full aluminum case, and a brushless motor get the job done over and over.

Voltage Range: 7.4V-16.8V

Speed:

• 0.105sec/60° @ 12.0V
• 0.092sec/60° @ 14.4V
• 0.085sec/60° @ 16.0V
• 0.080sec/60° @ 16.8V

Torque:

• 25 kg-cm (350 oz-in) @ 12.0V
• 29.5 kg-cm (412 oz-in) @ 14.4V
• 32 kg-cm (440 oz-in) @ 16.0V
• 34 kg-cm (471 oz-in) @ 16.8V

Steel Gears

Brushless Motor

Size: 1.60in x 0.82in x 1.2in

Weight: 66.5g

Order comes with the servo, plastic horns, as well as 3S & 4S balance plug direct power adapters.

1 Year bumper to bumper warranty and comes with Buy Once Cry Once lifetime warranty on gearset.

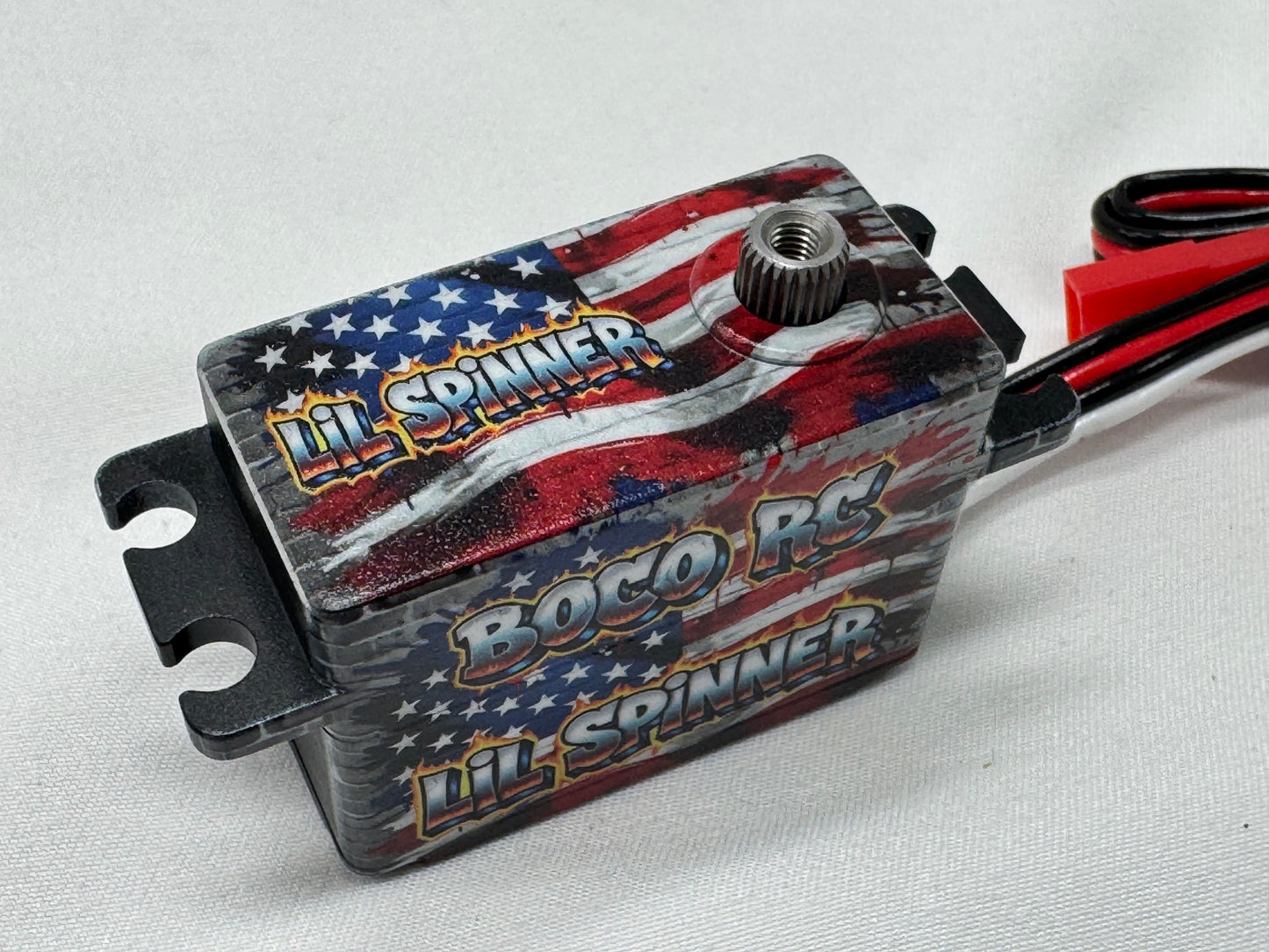

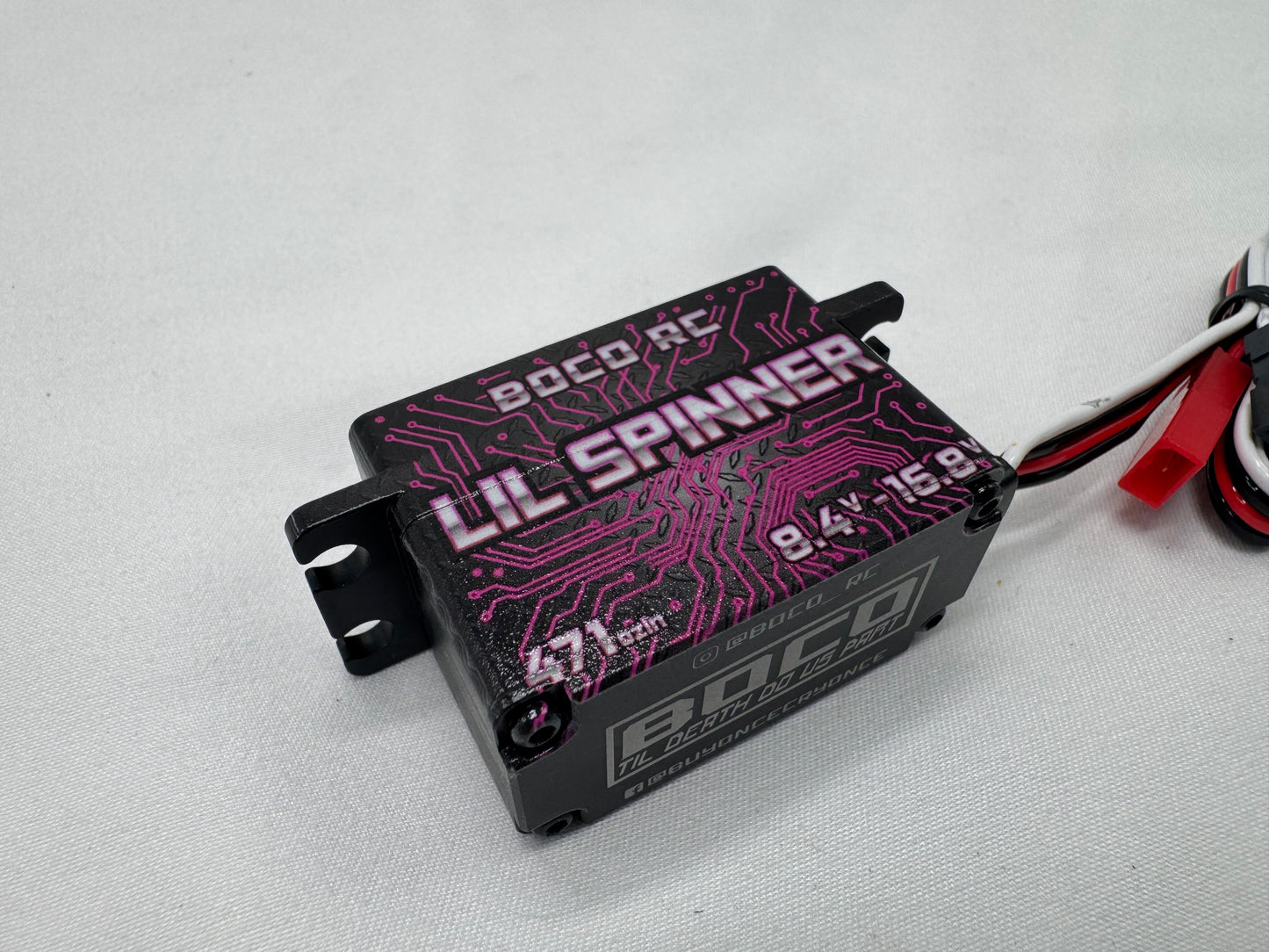

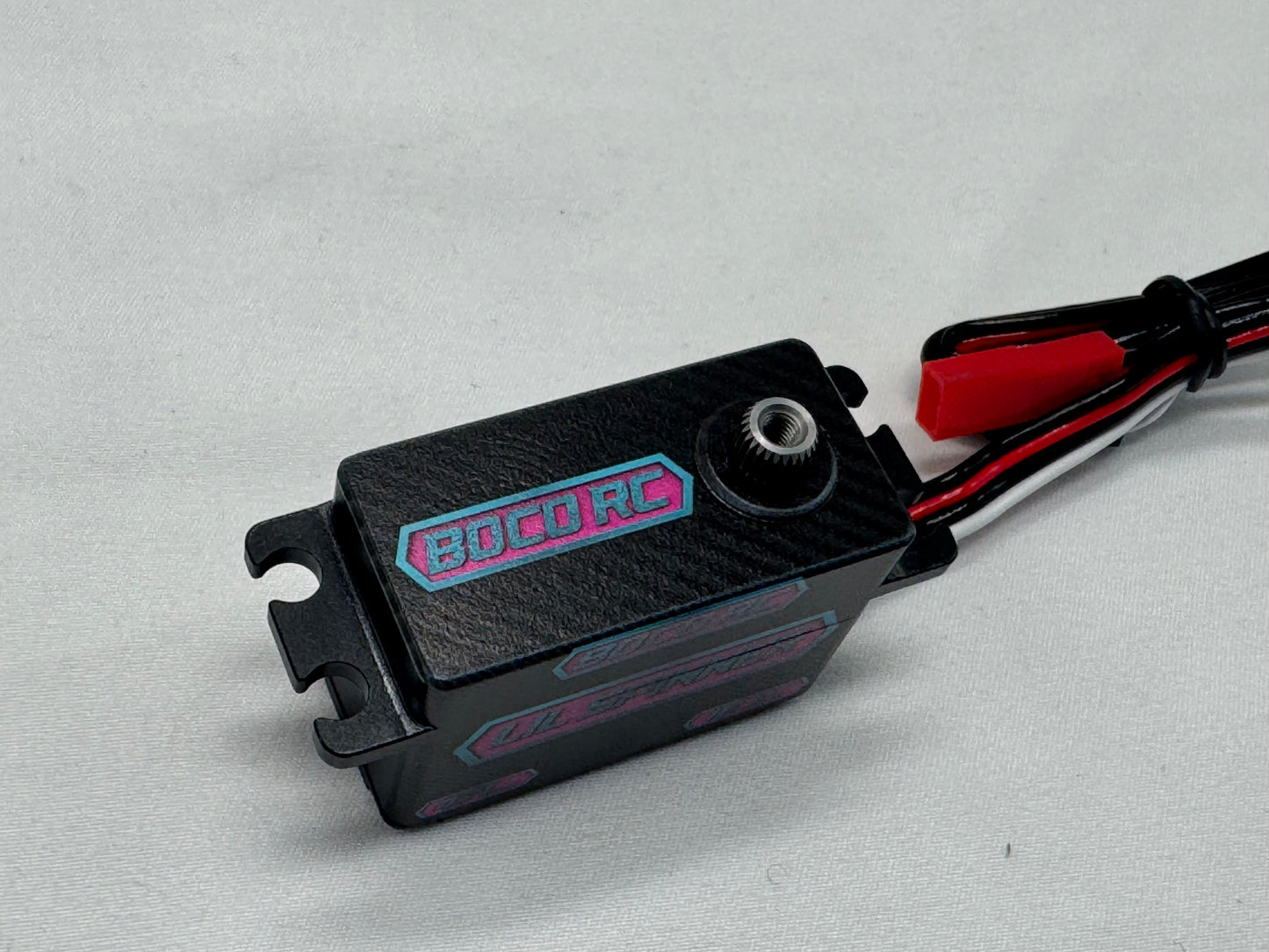

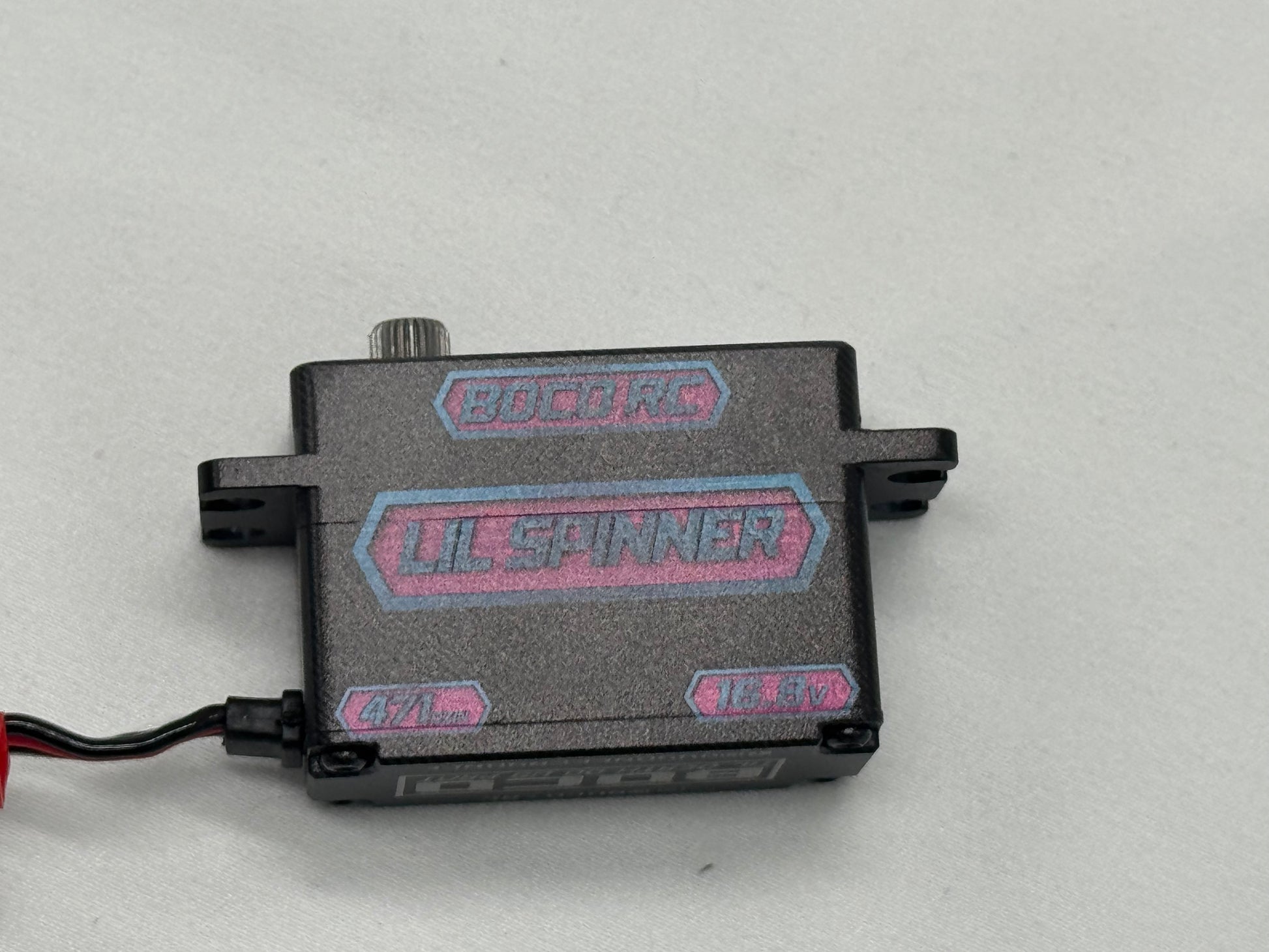

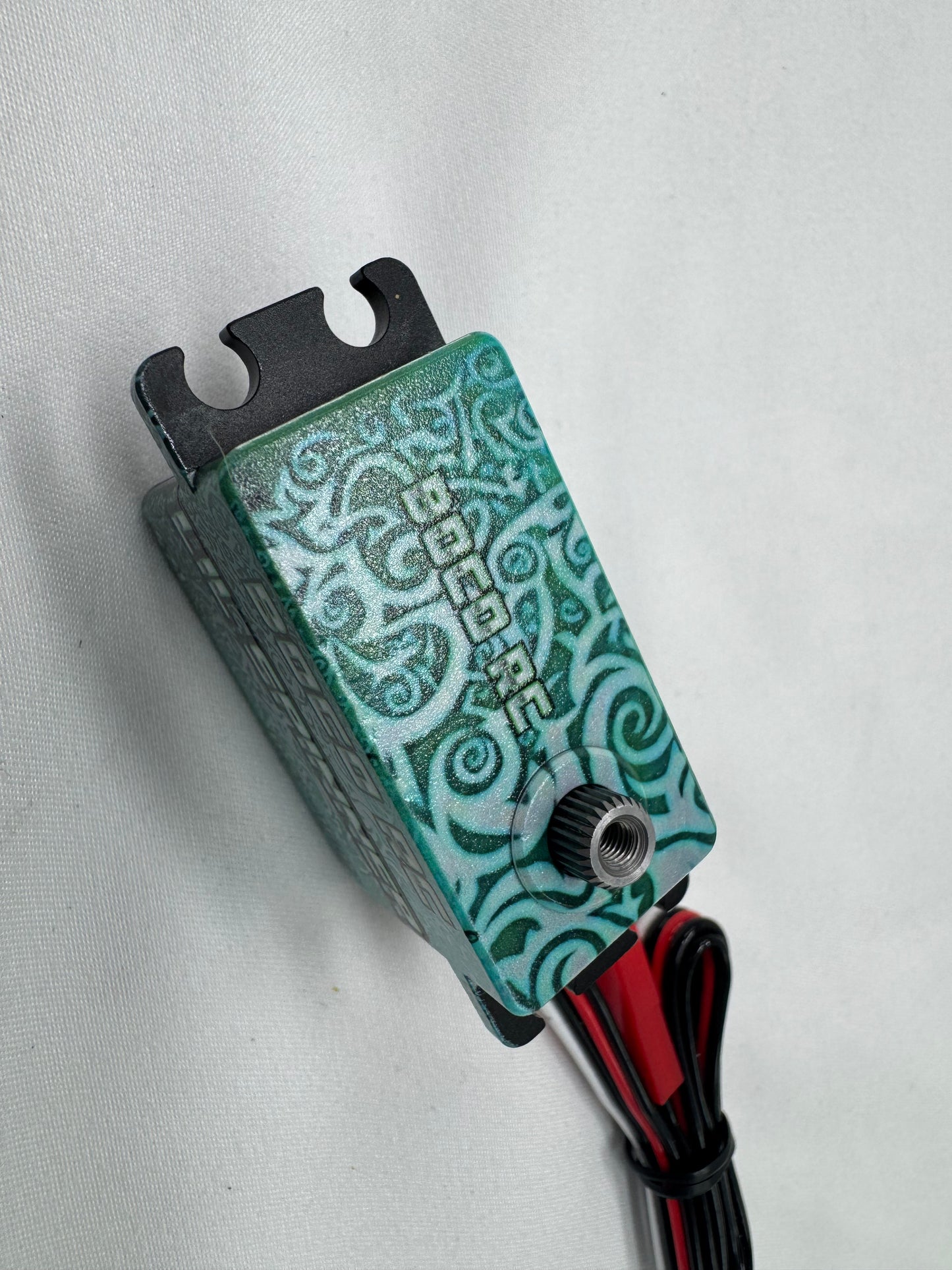

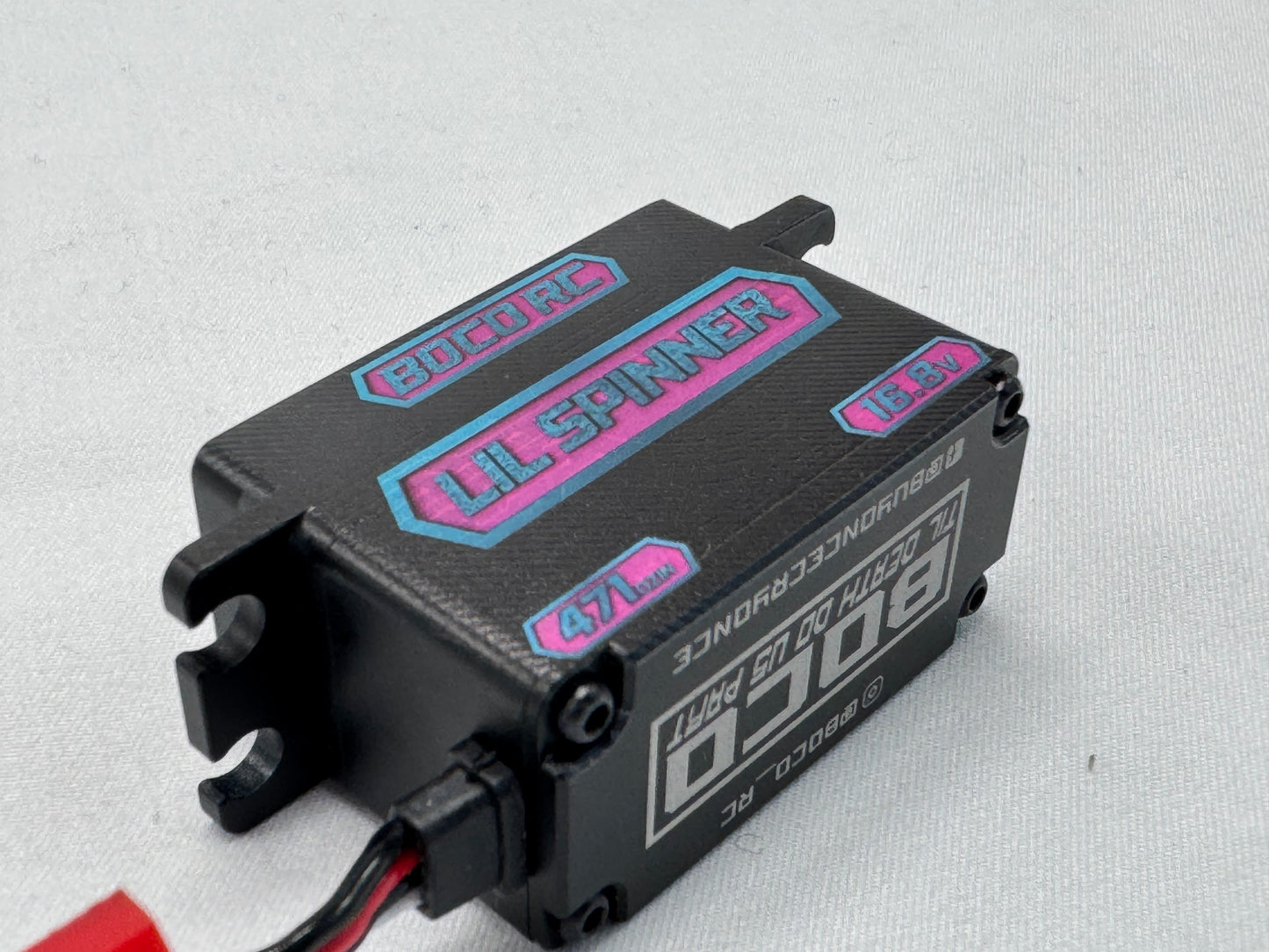

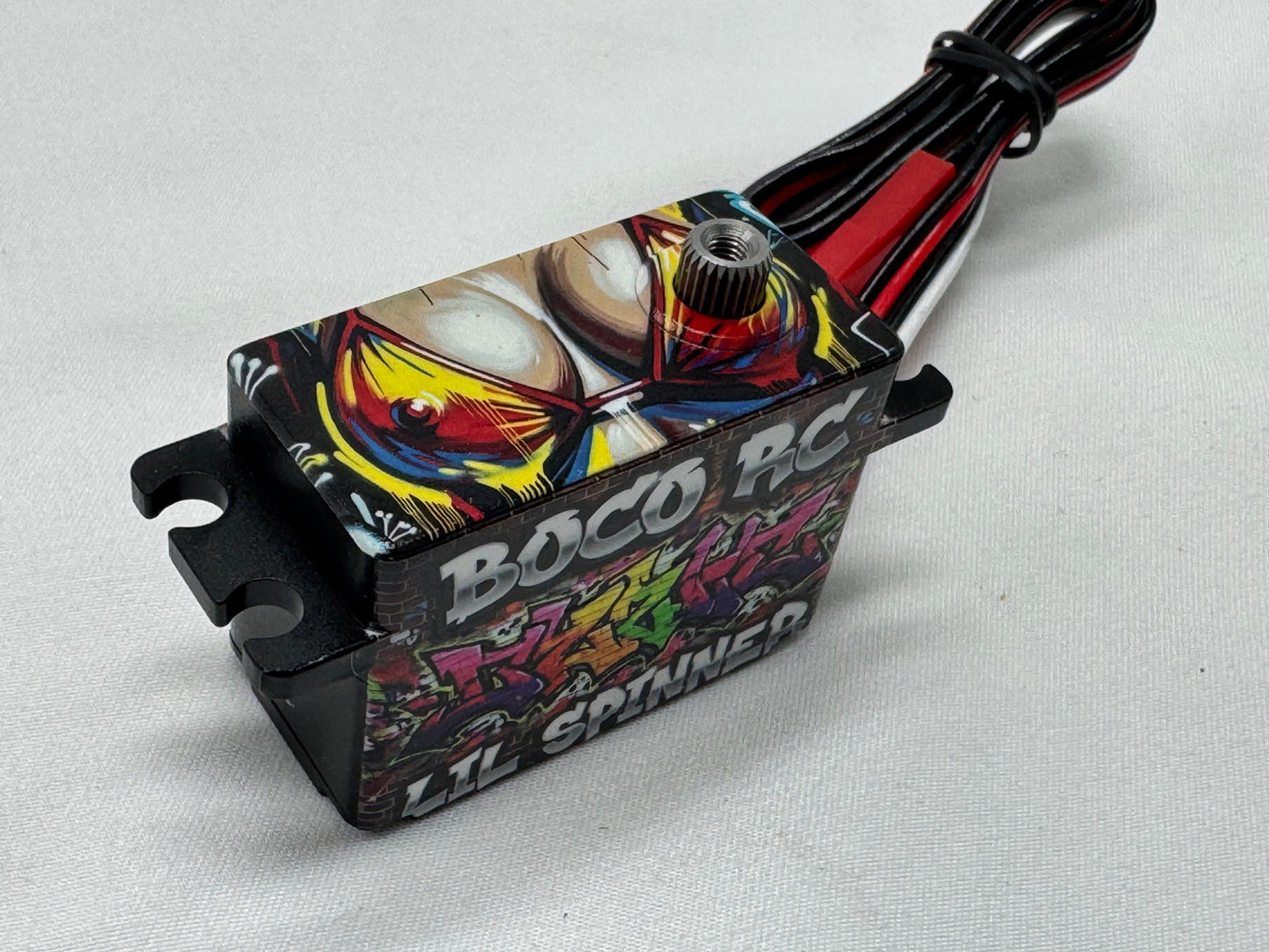

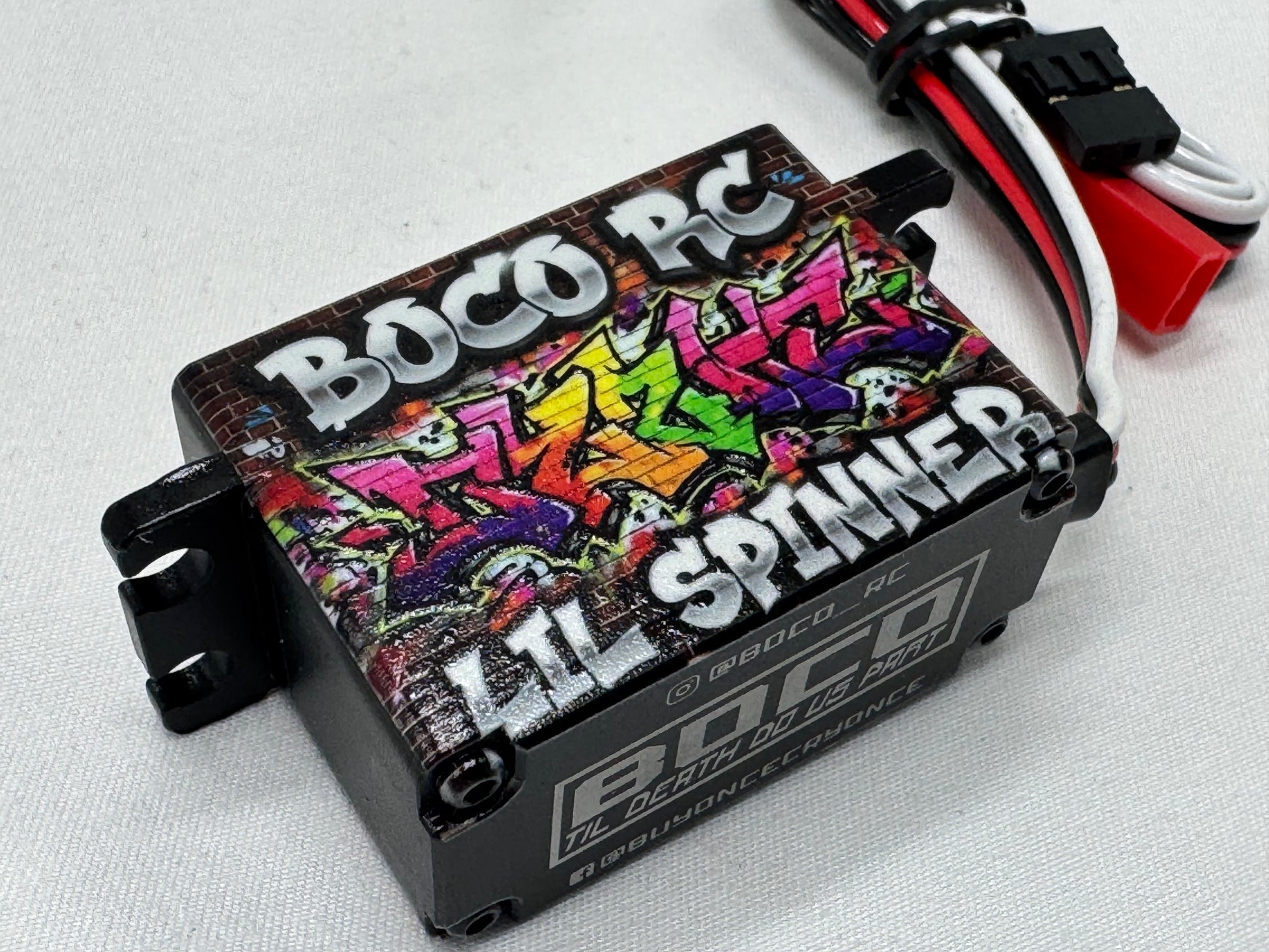

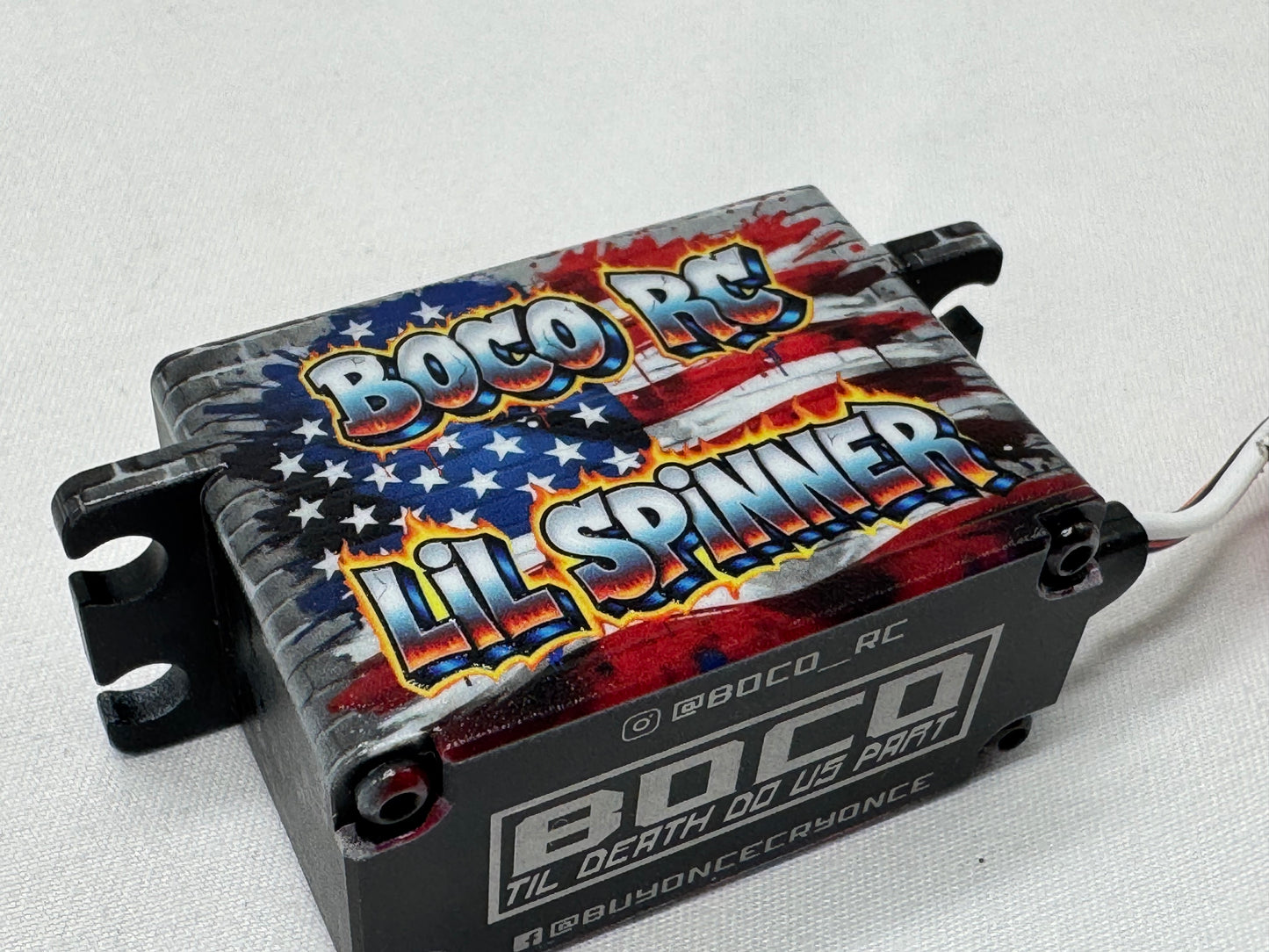

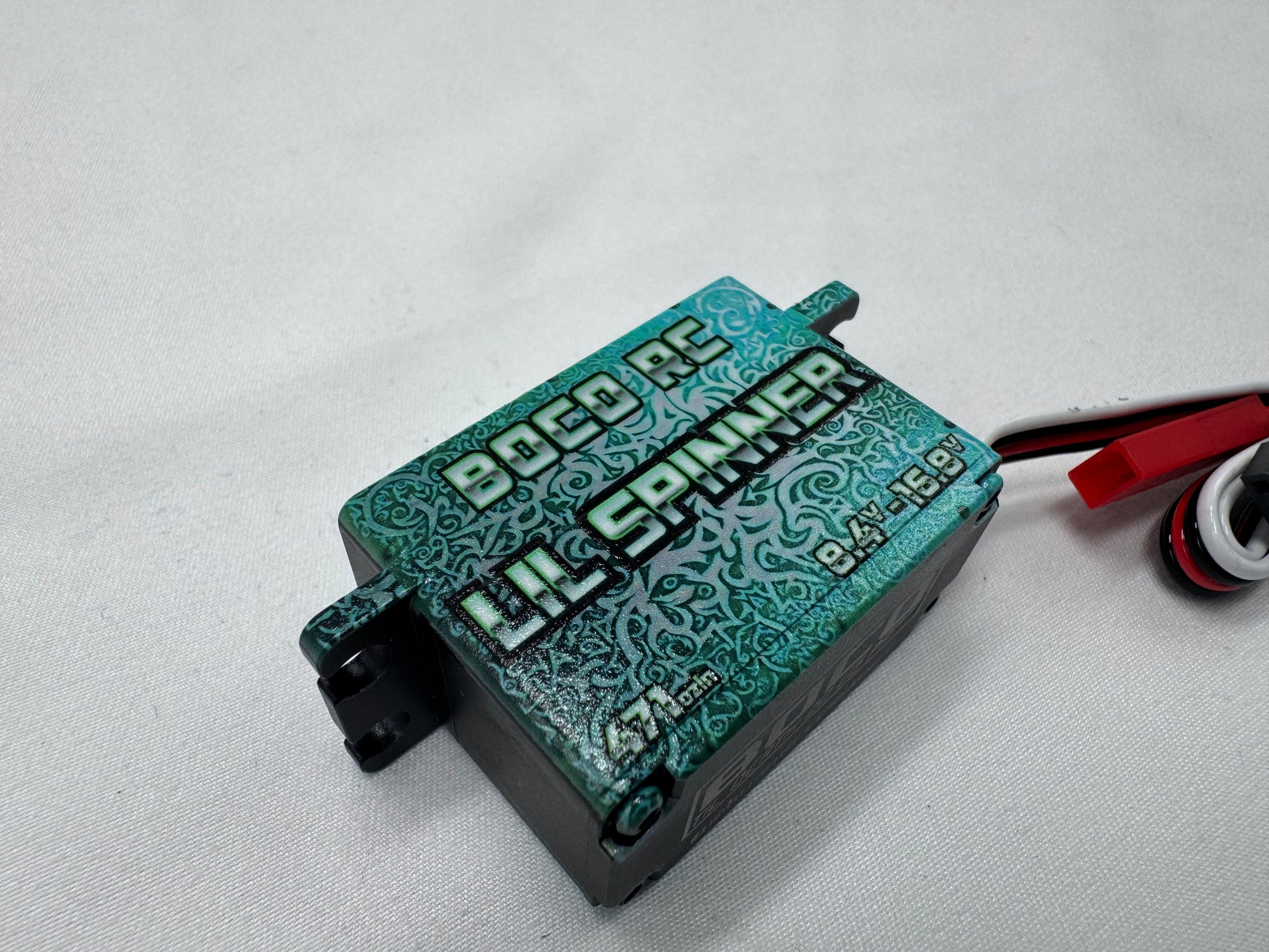

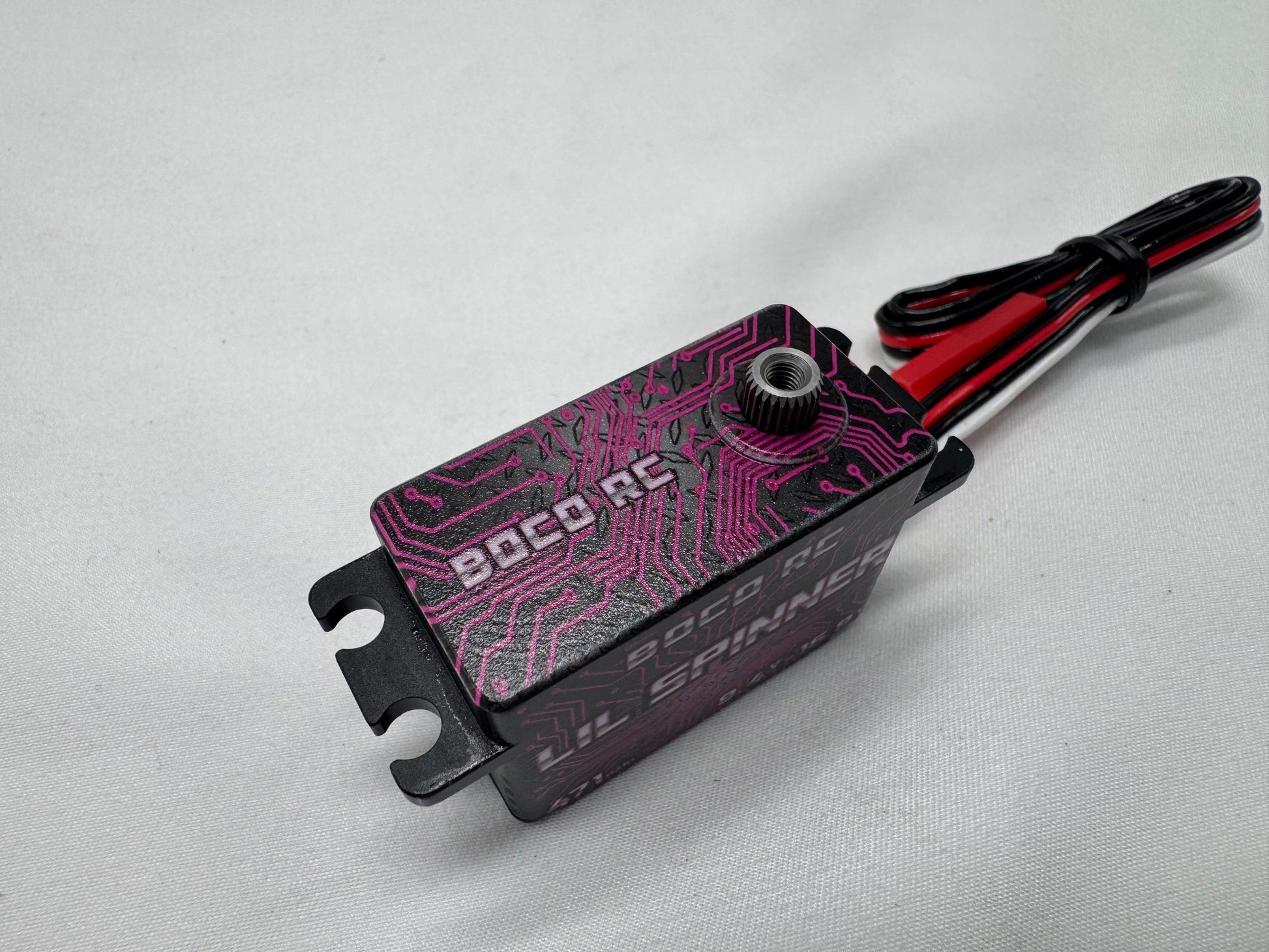

Graphics options are a UV paint that cures with adhesion similar to anodize.  The servo is taken apart and ran through a multistep prep and coating process.  There can be slight sizing, spacing, or color variance between servos and batches.

If your servo is BTA and drags low it will wear as the servo does.  The rocks take aluminum away too.  90 Day warranty on chips, cracks, or lifting more than 2mmx3mm.

This servo is not intended for heavyweight rigs or bashers - excessive abuse causing multiple failures may void warranty.

If you submarine your rigs for extended periods please remote bottom cap of servo and let it air dry.
