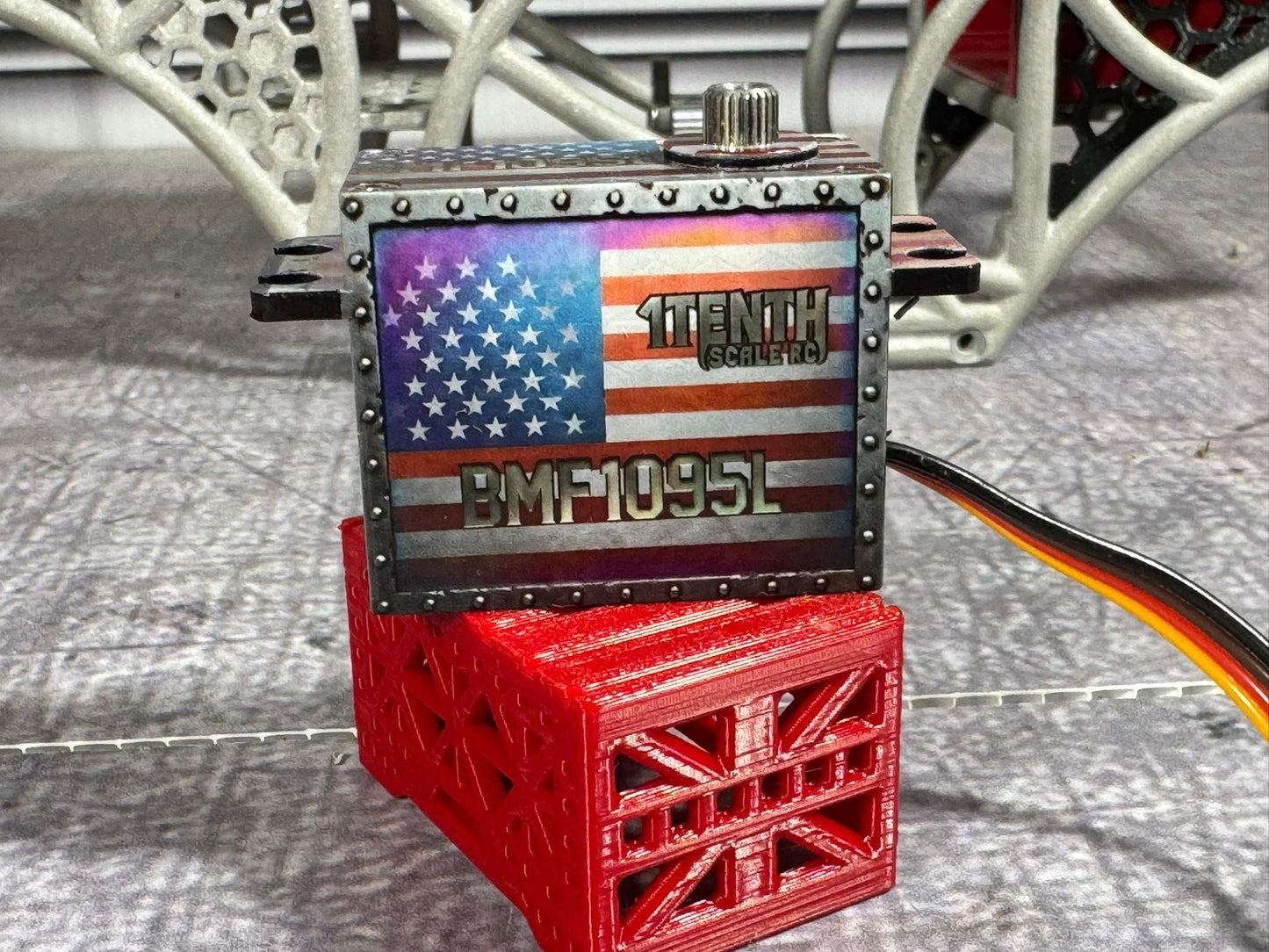

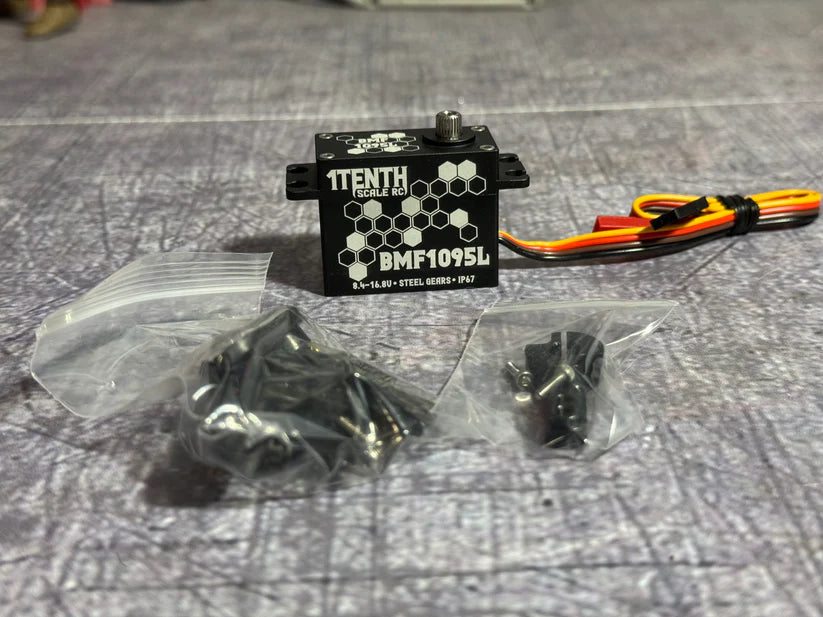

1Tenth managed to squeeze out 85KG and good speed out of a compact package. Meaning the BMF1095L makes closer to 1150ozin on 4S and can wiggle the tires pretty good of almost any 1/10 rig.
This servo is a ground up design for 1Tenth scale to provide class leading power and speed for your comp, trail, or show rig.

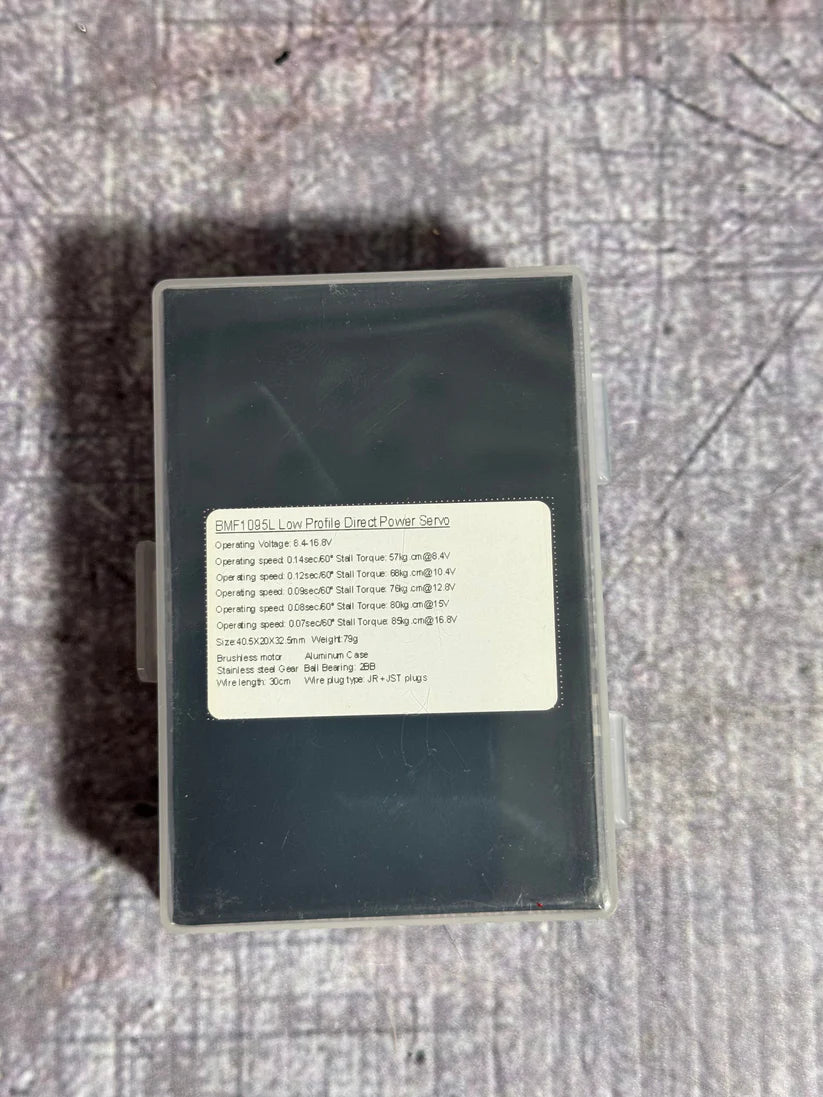

Specs:
8.4v - .14sec / 55KG
12.8v - .088sec / 75KG
15v - .074sec / 80KG
16.8V - .069sec / 85KG
IP67 Rating
Brushless Motor
Full Aluminum Case
Stainless Steel Gears
25T Spline
Comes with a 1 yr bumper to bumper warranty covering electronics and gears.

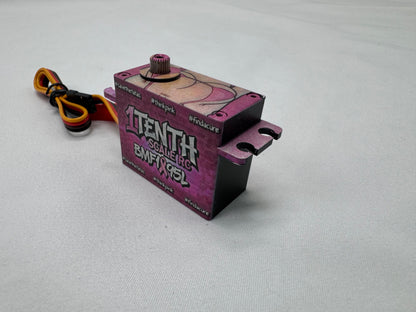

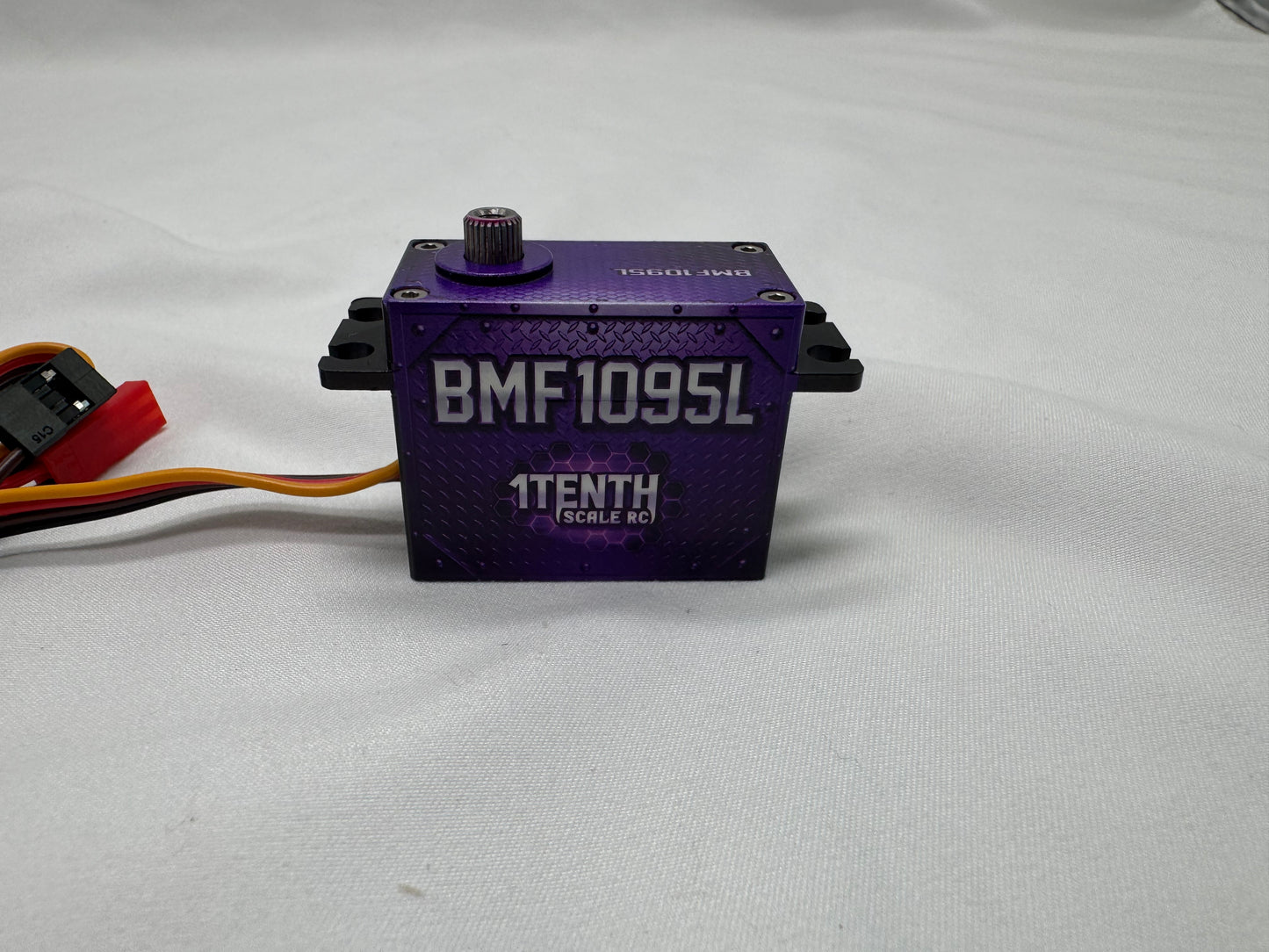

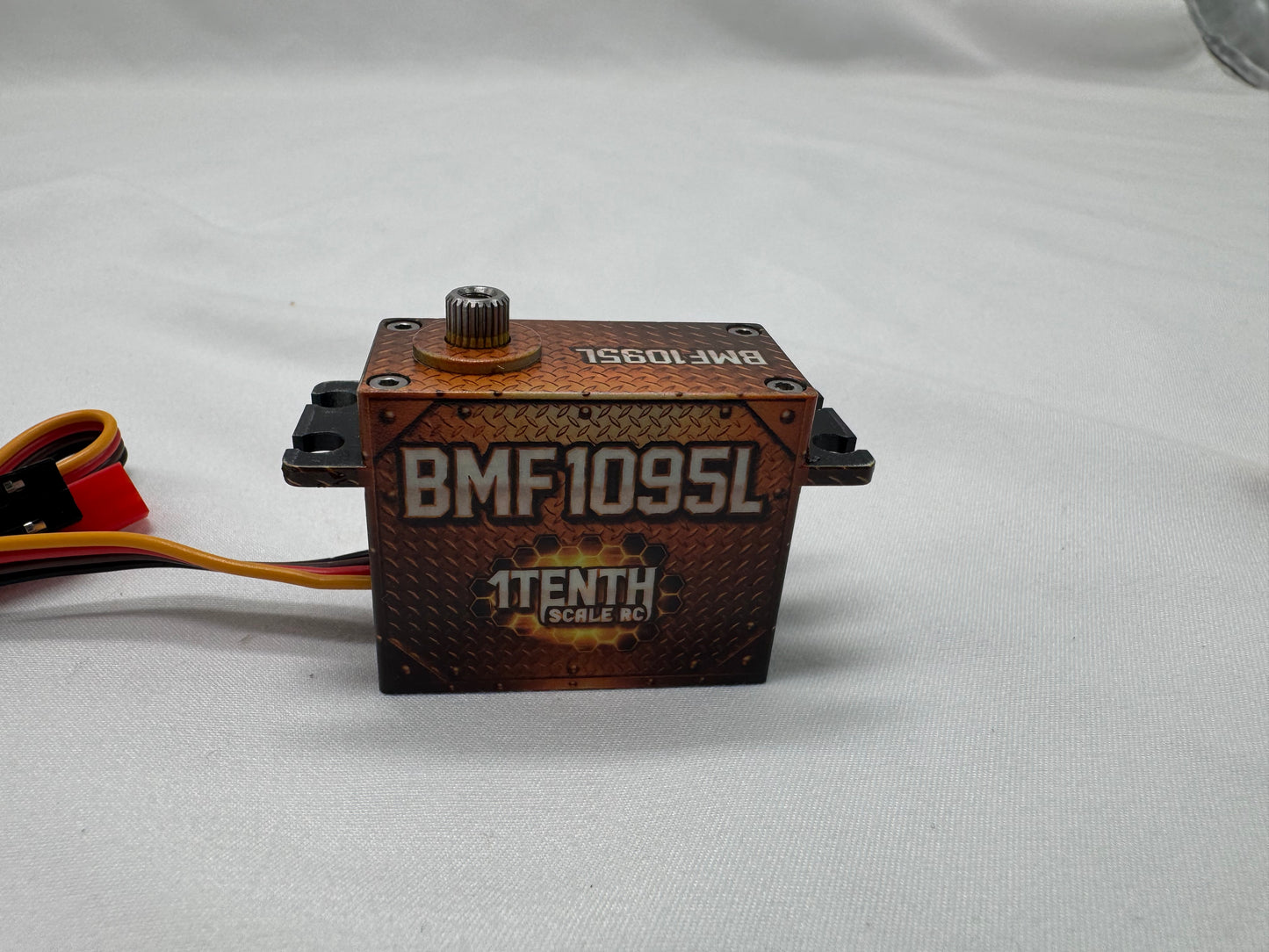

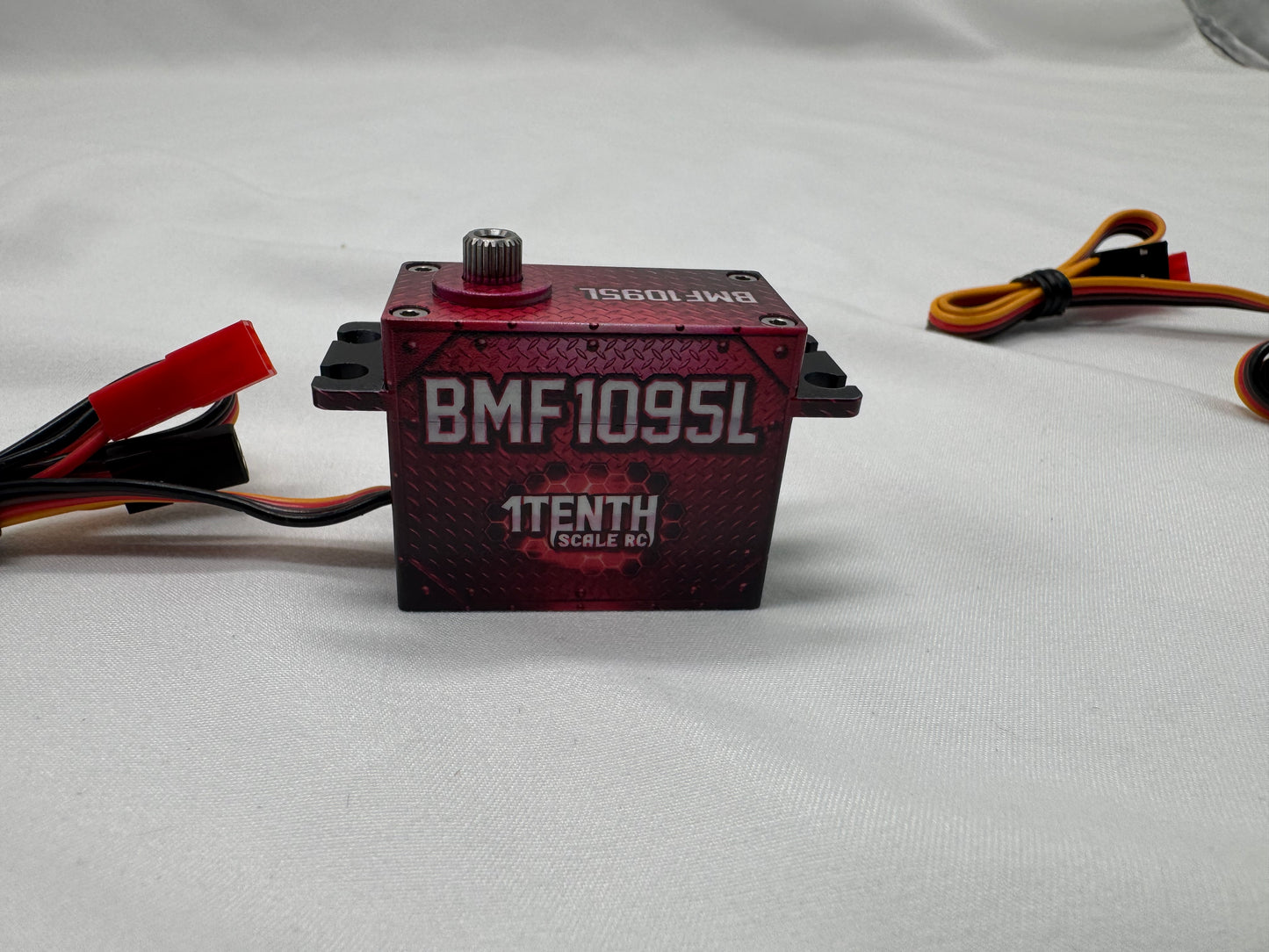

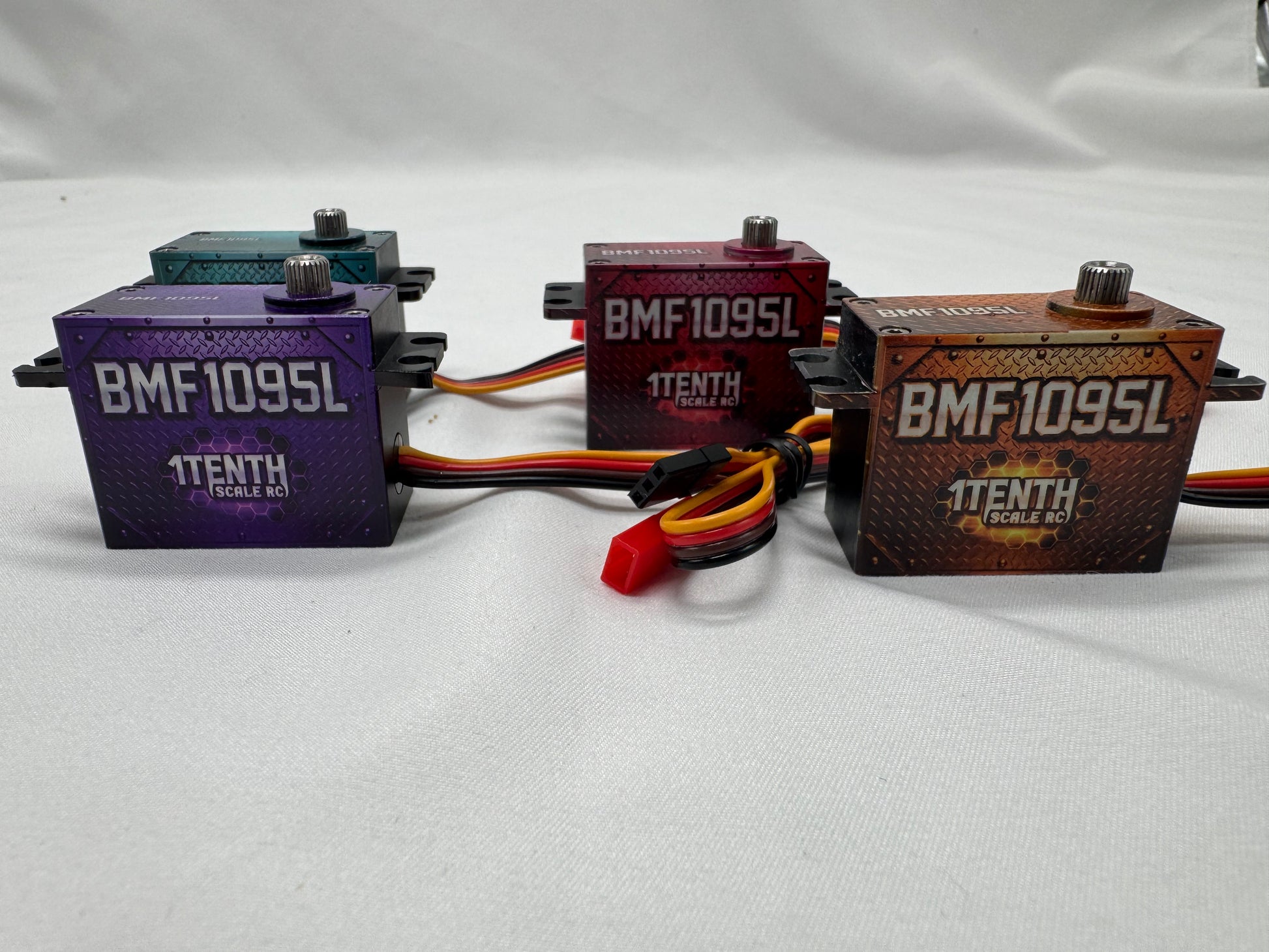

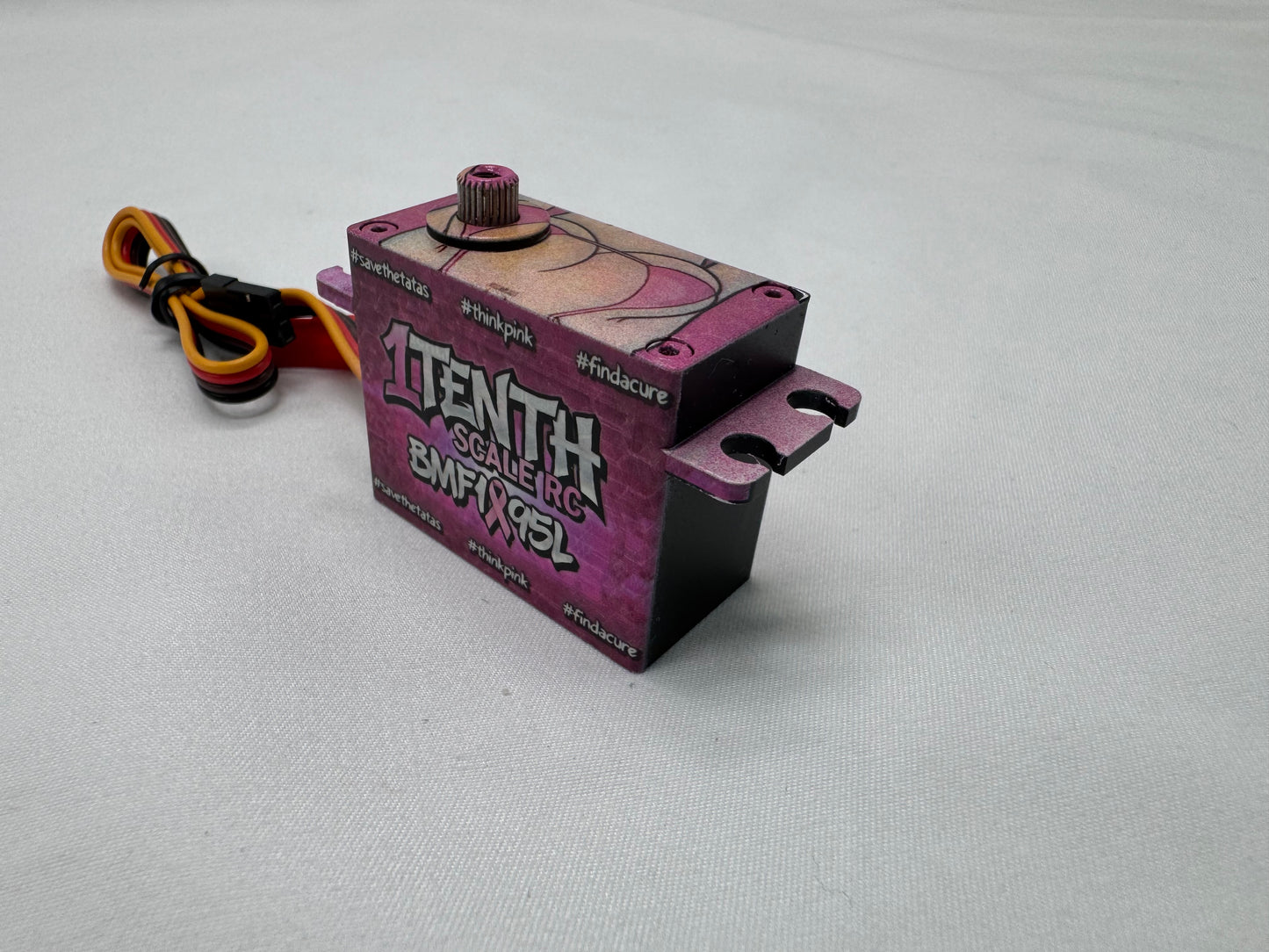

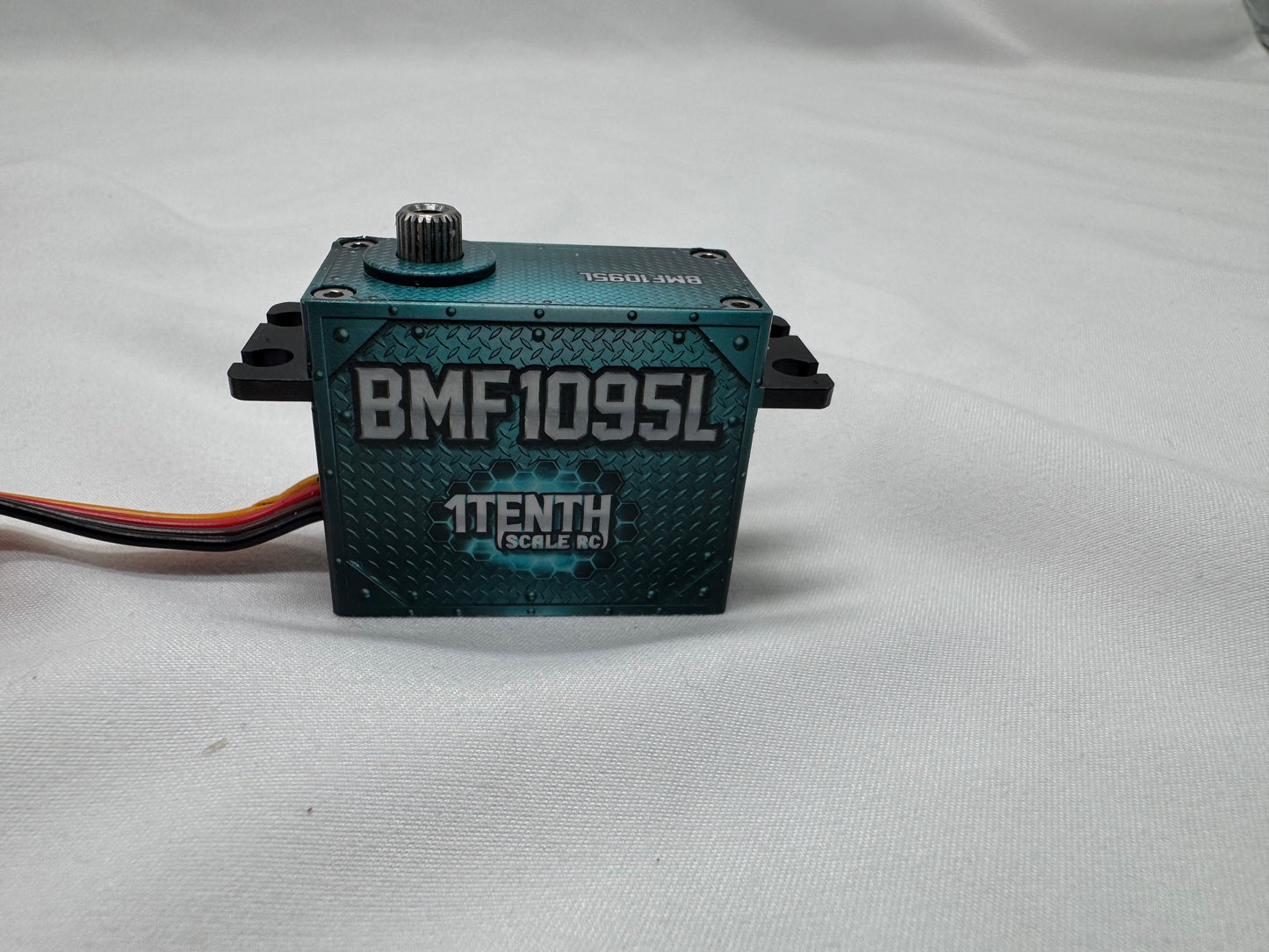

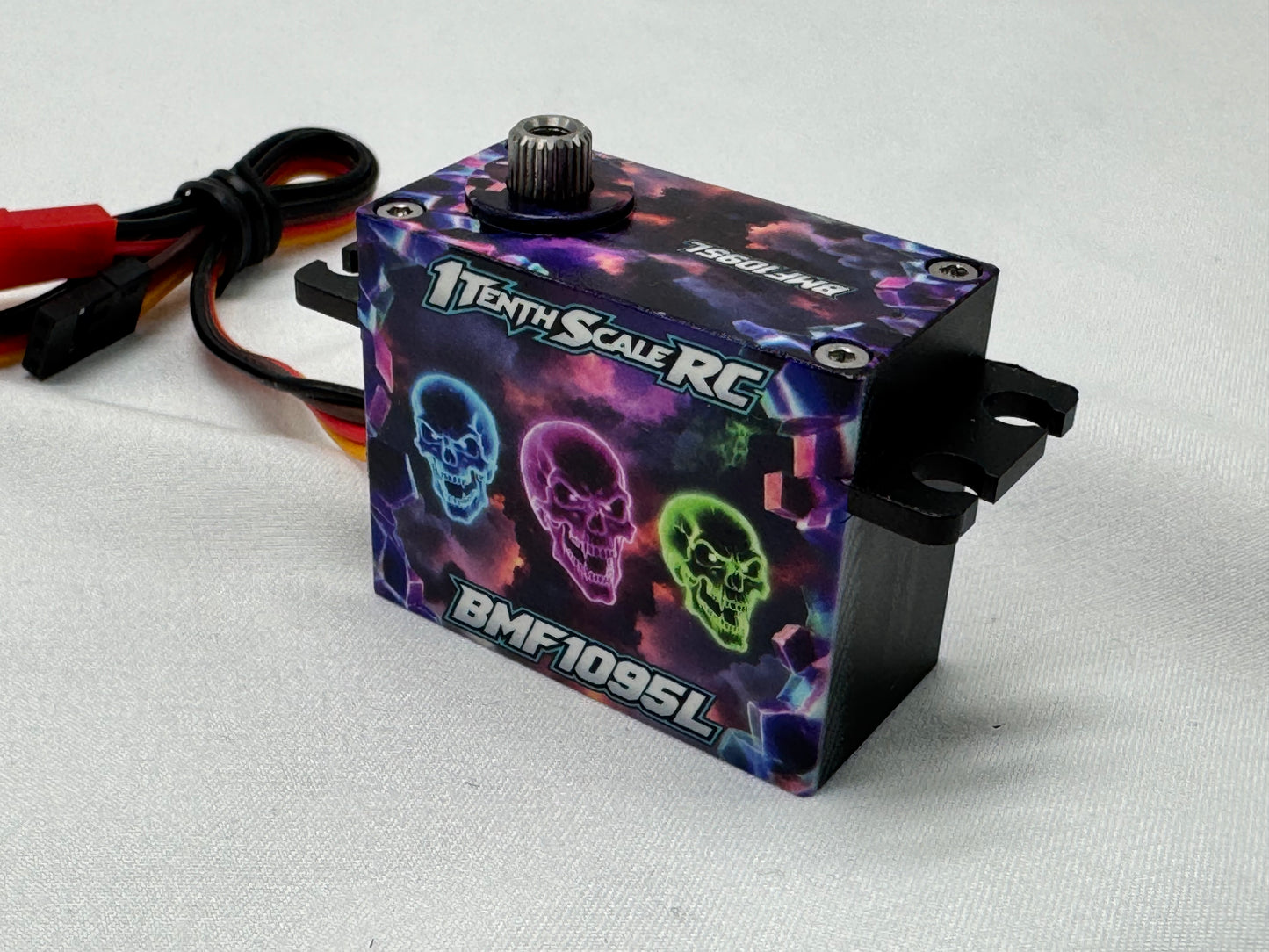

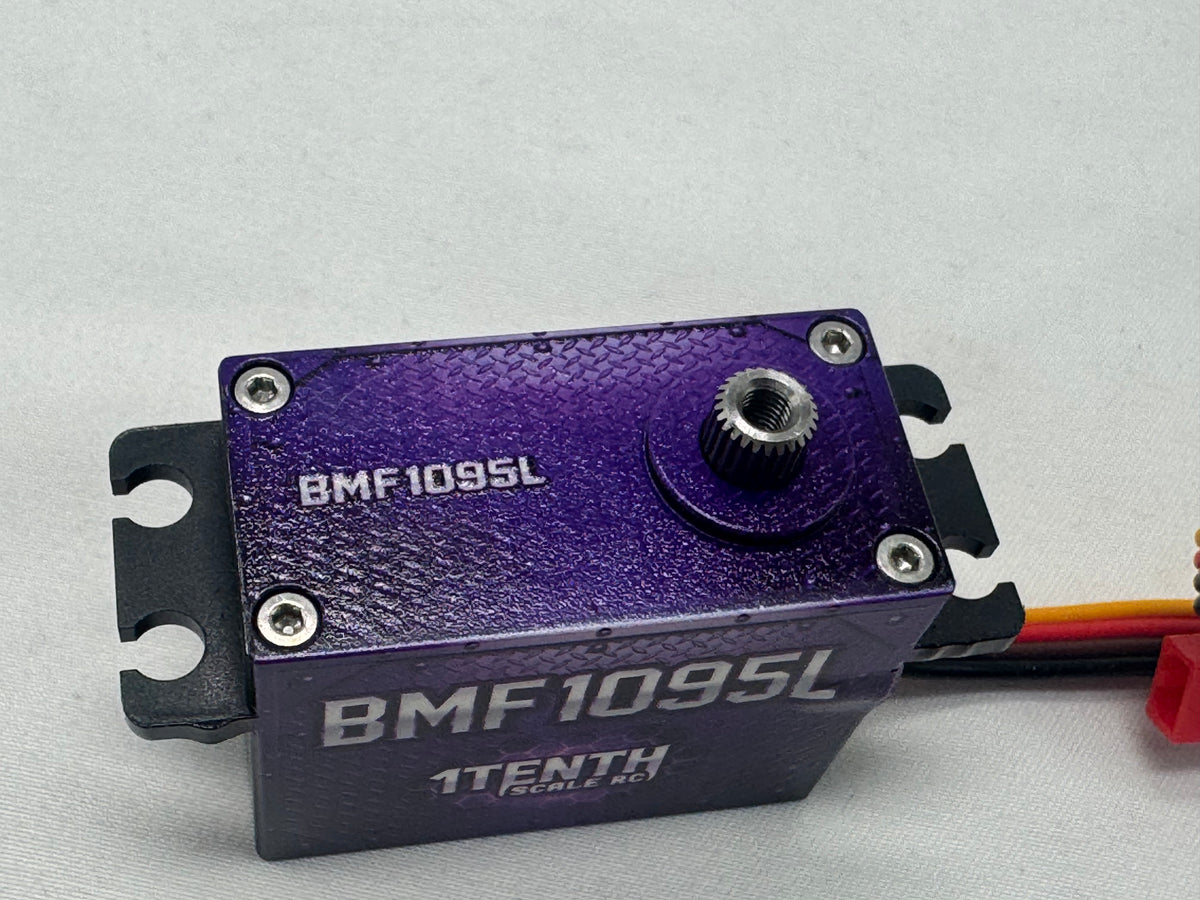

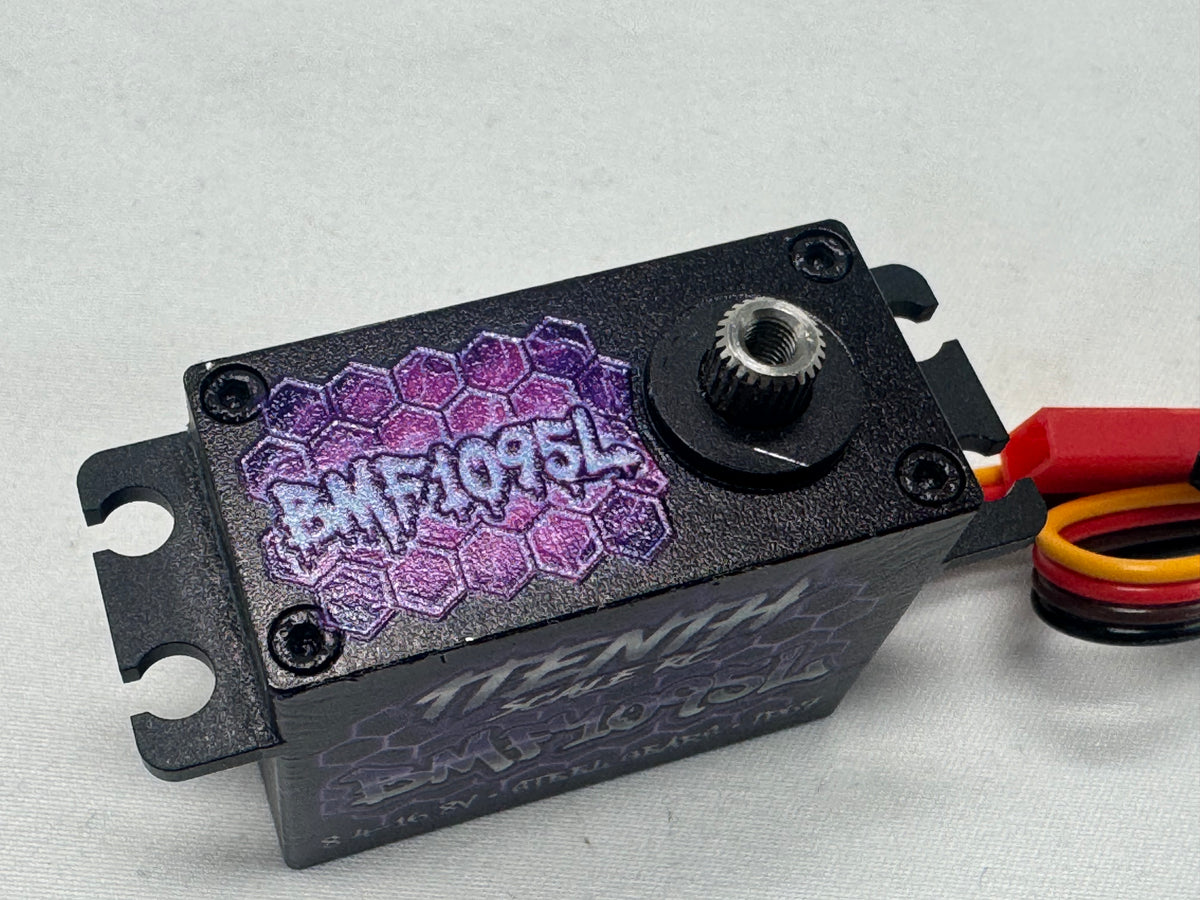

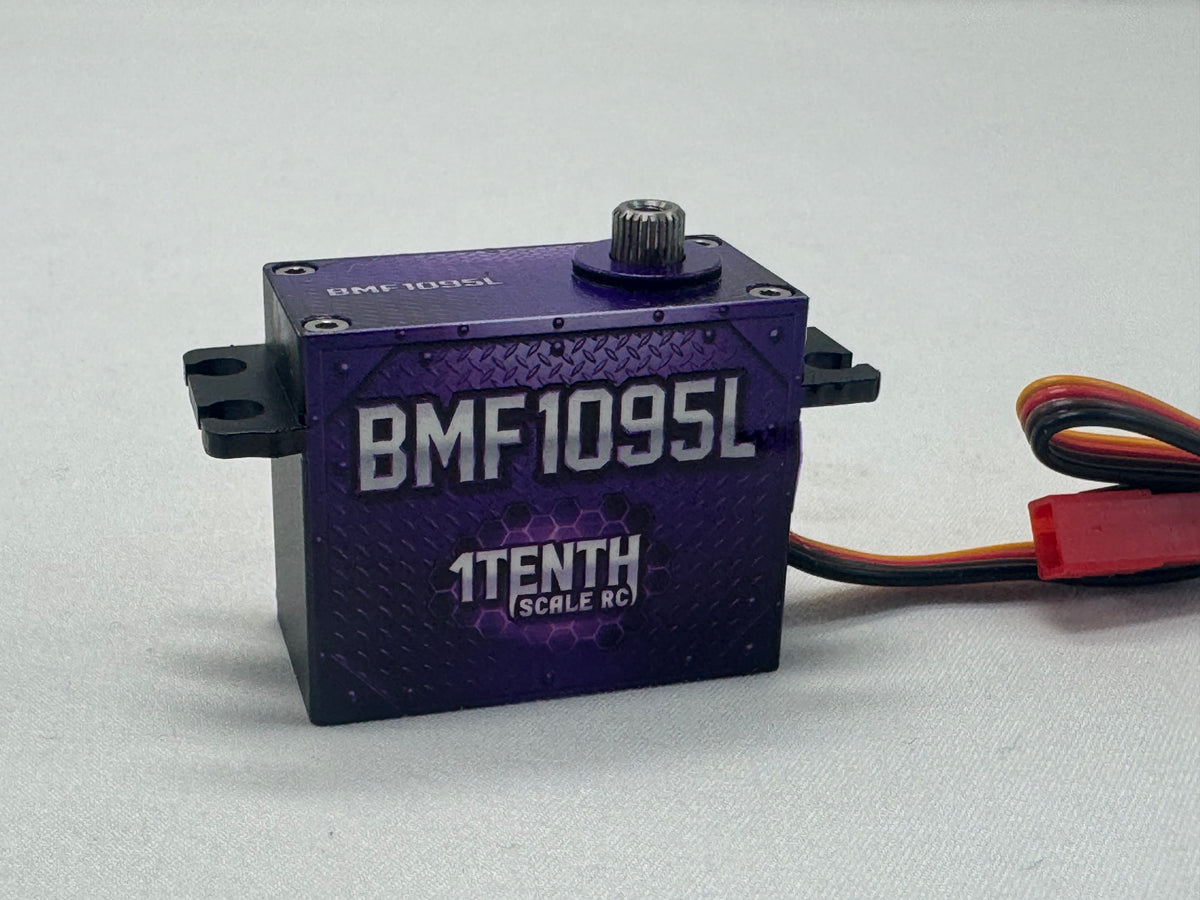

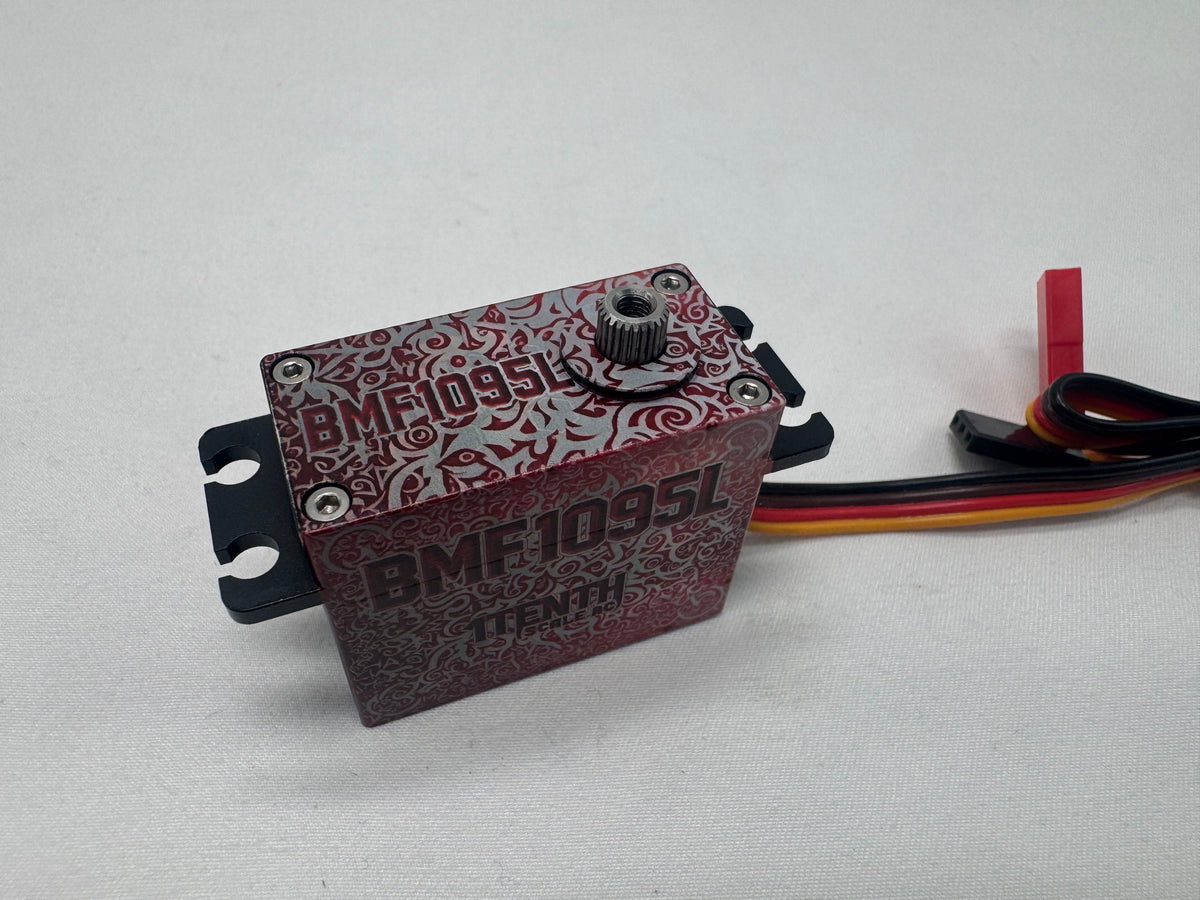

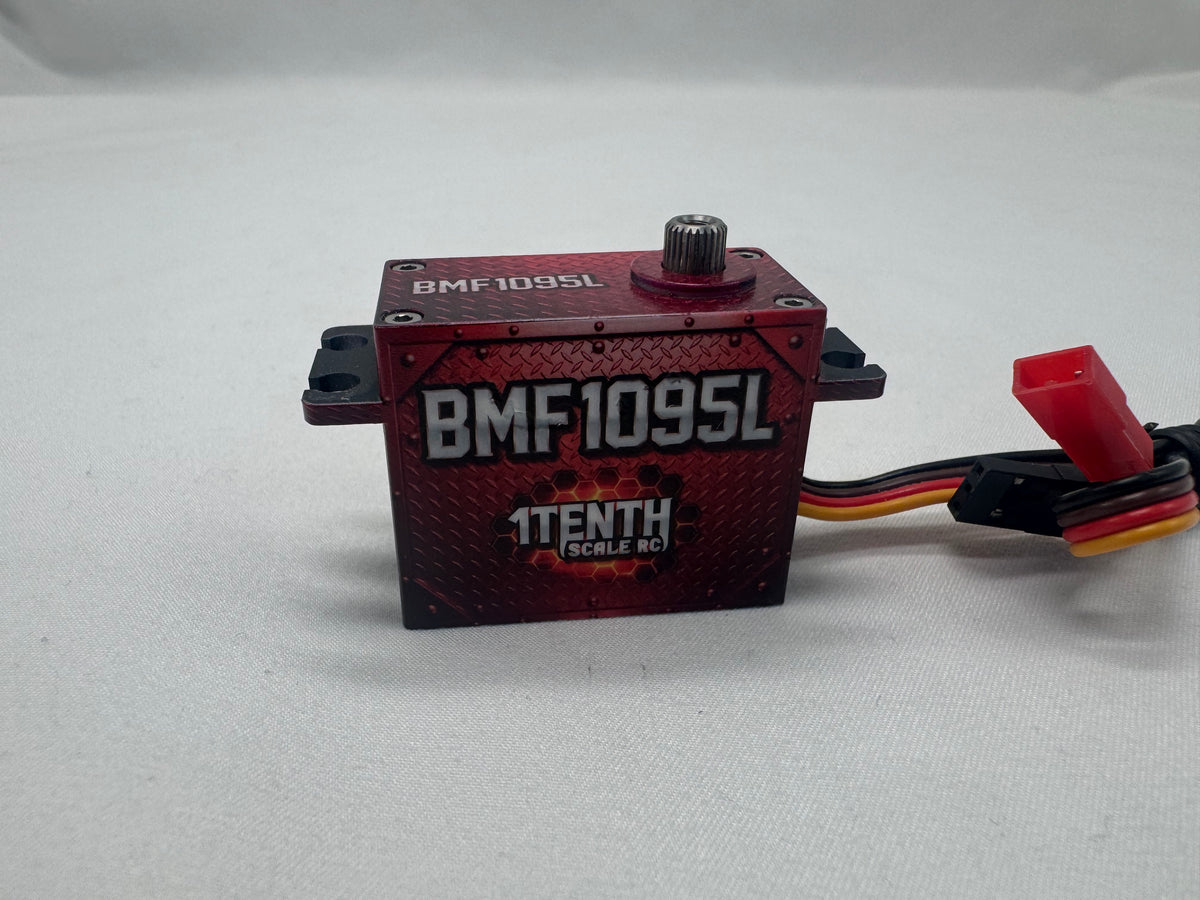

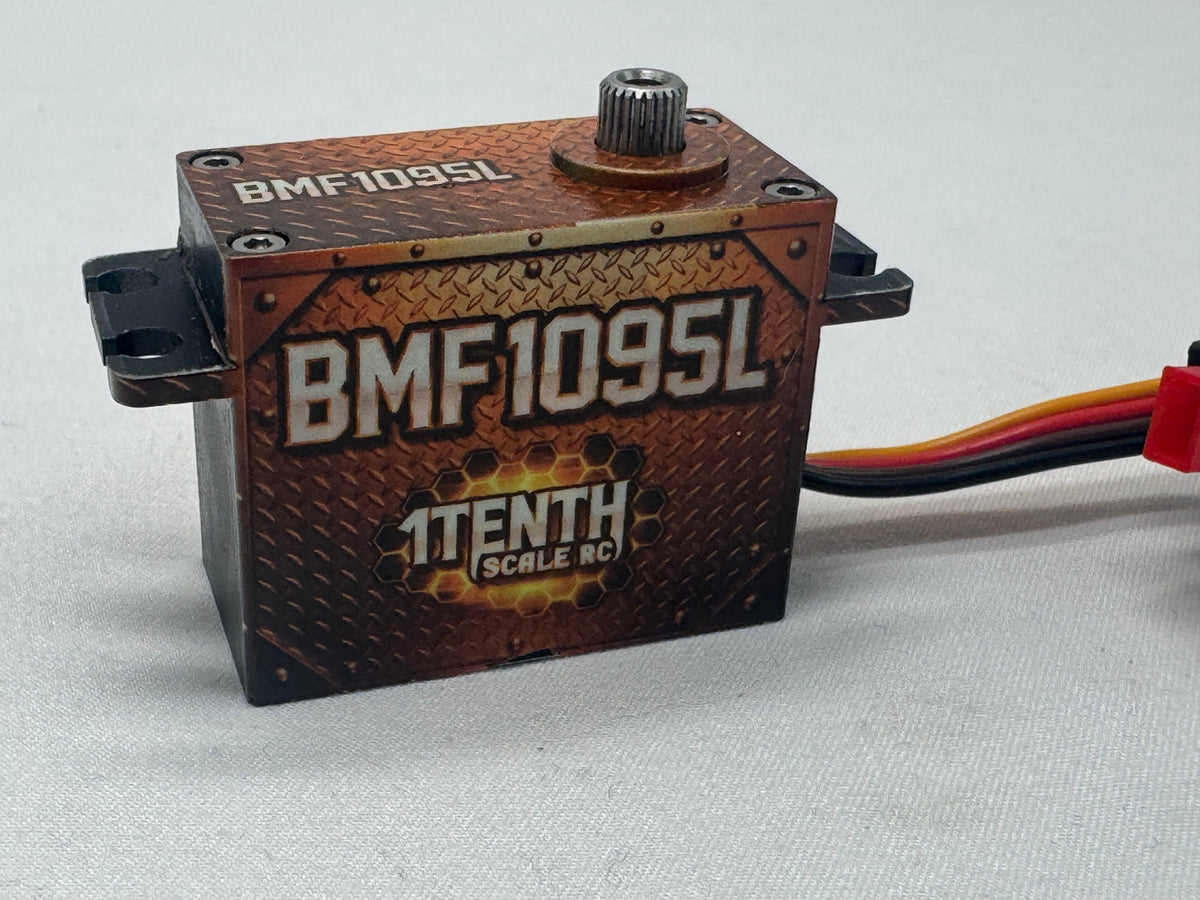

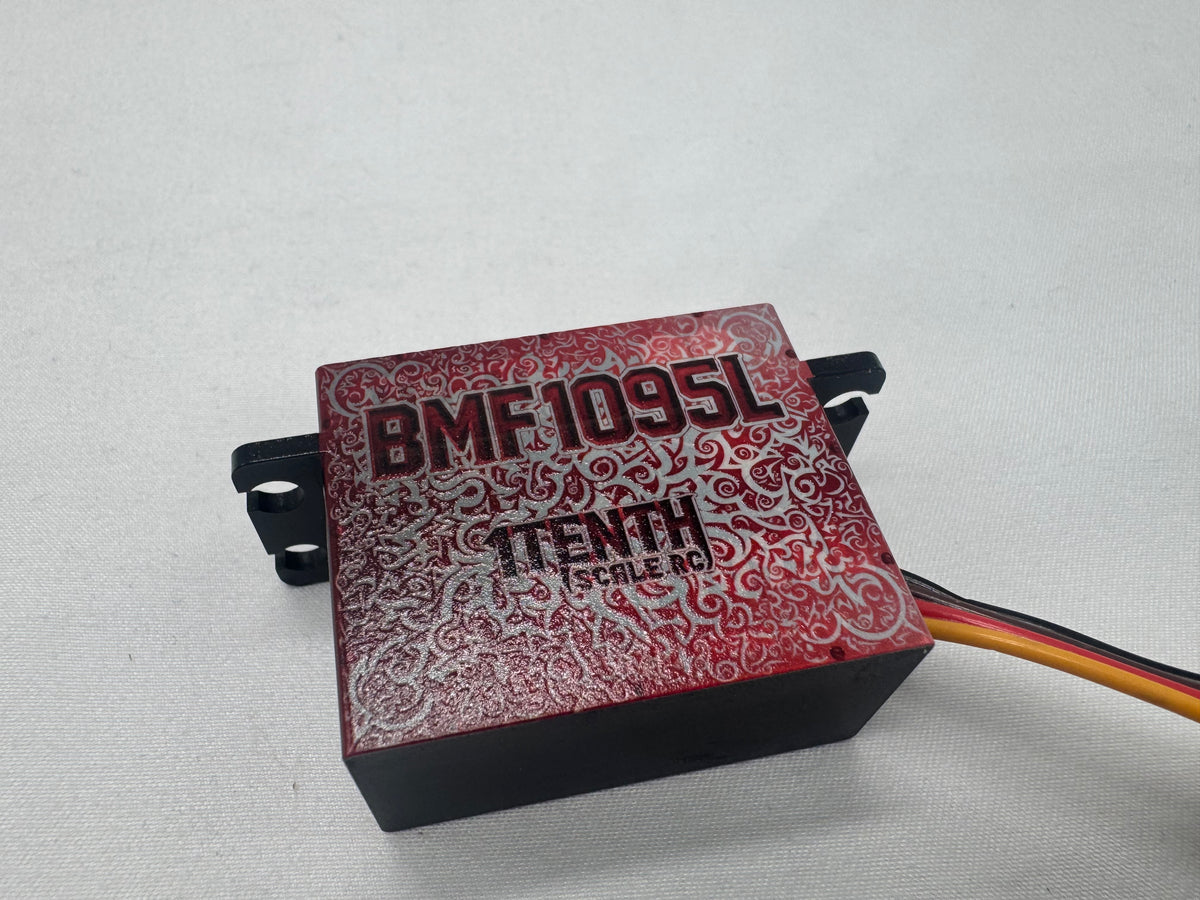

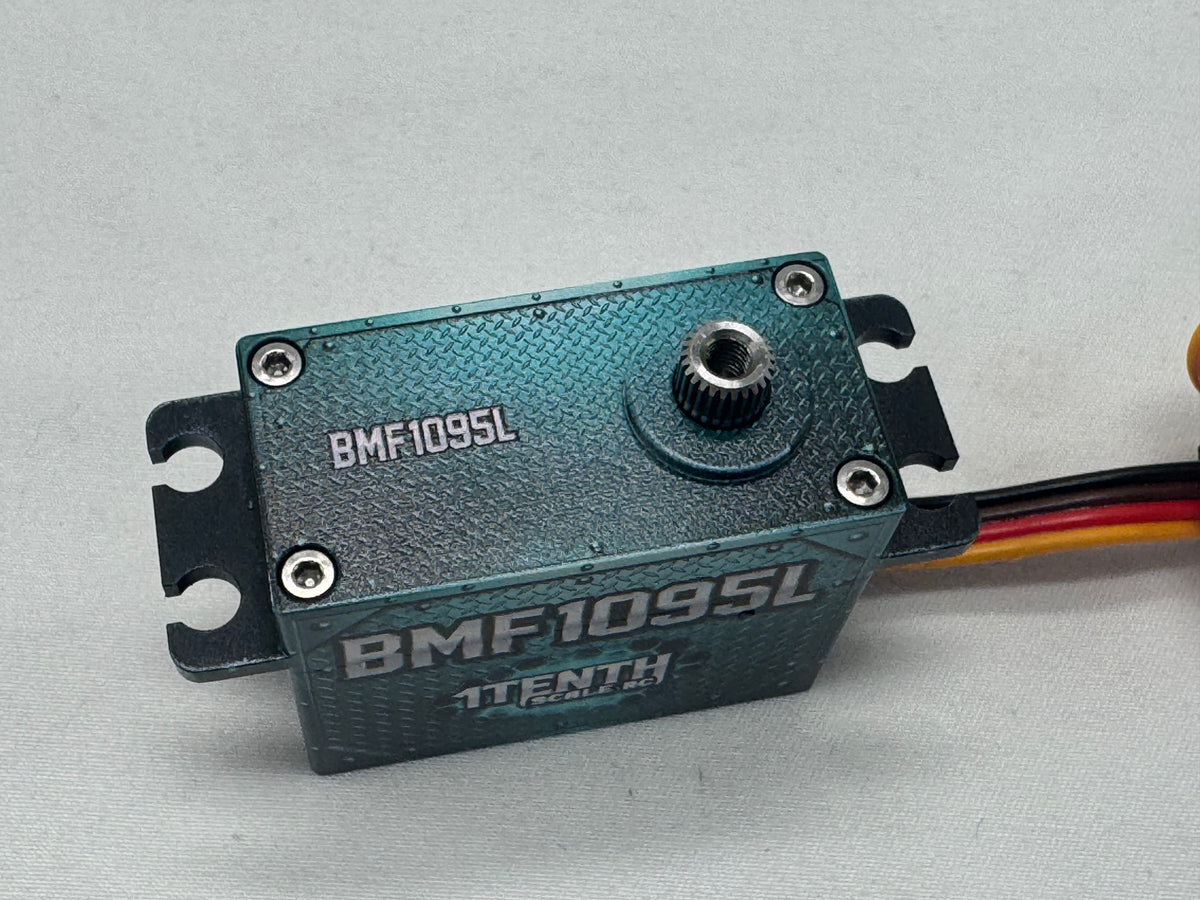

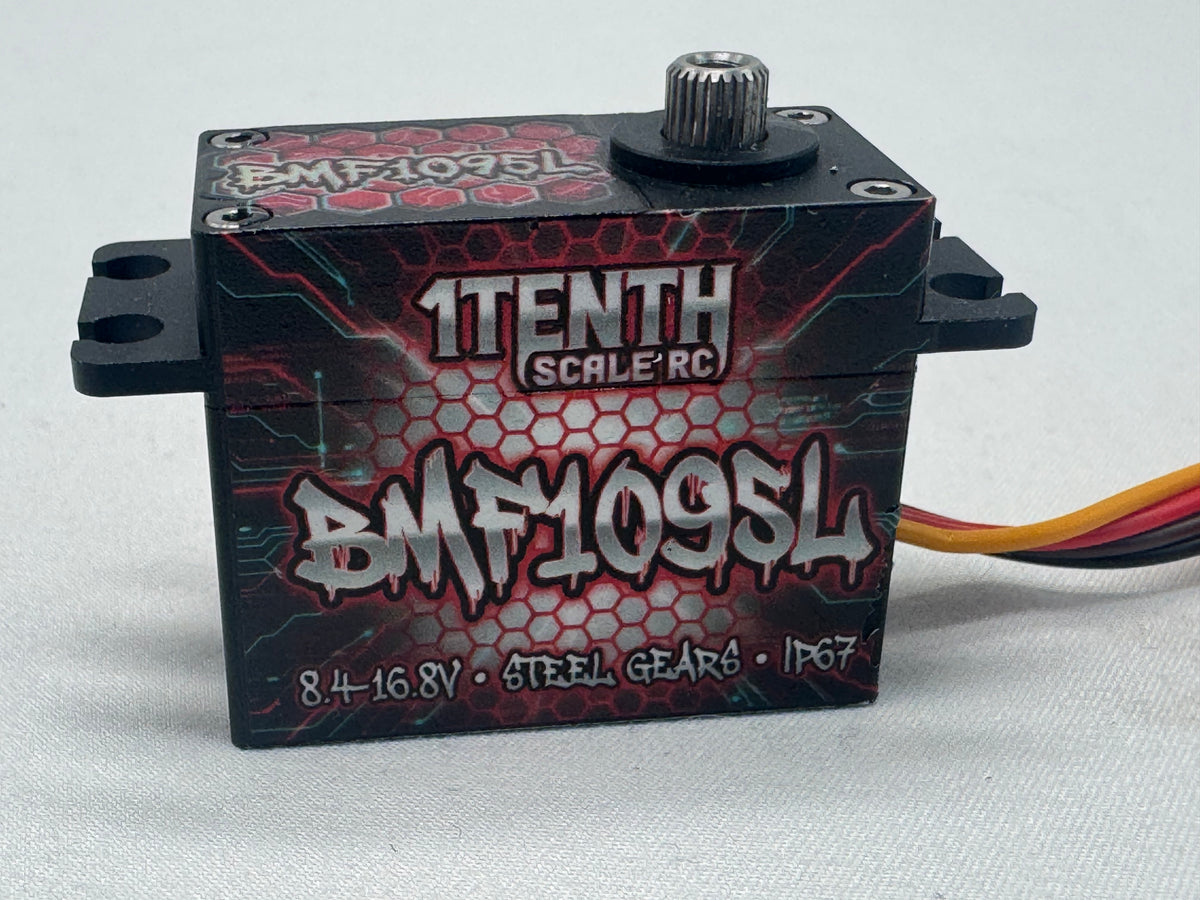

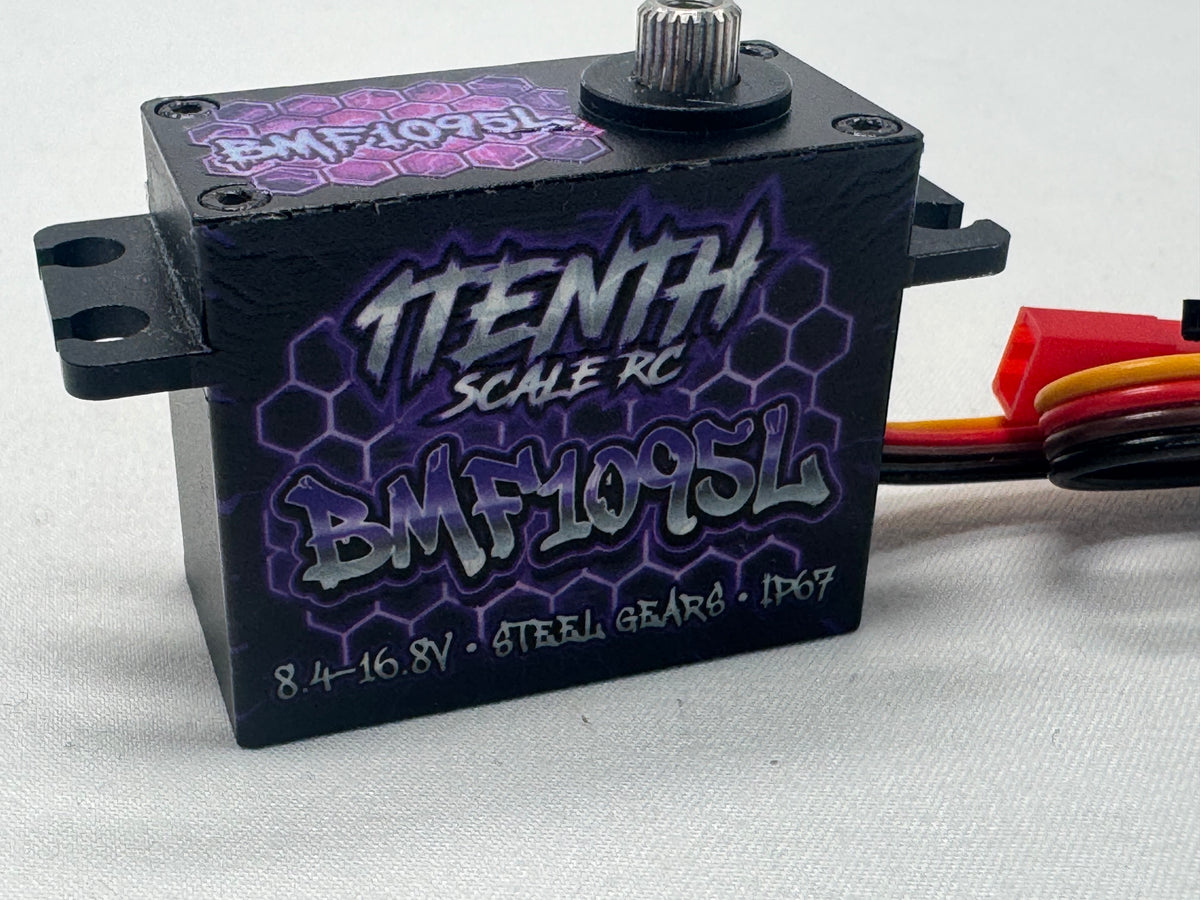

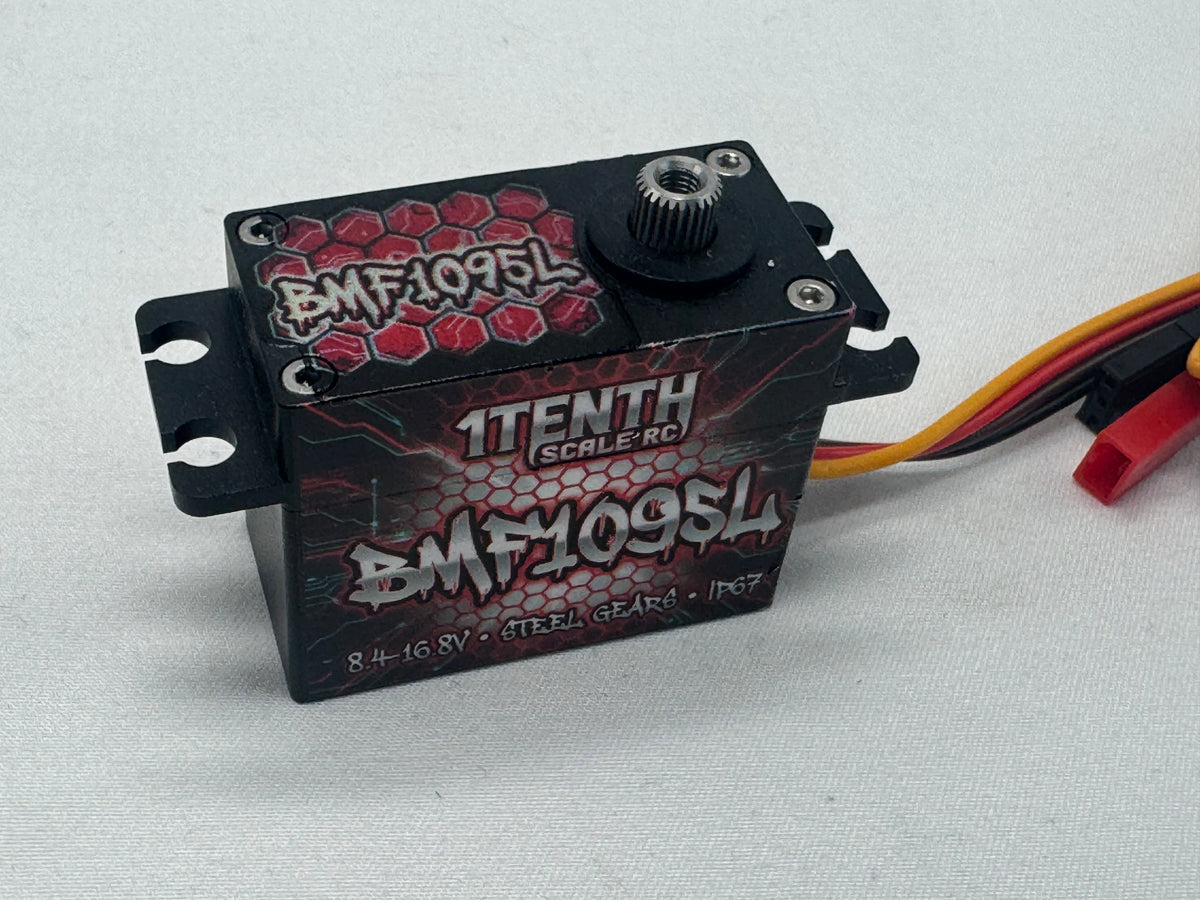

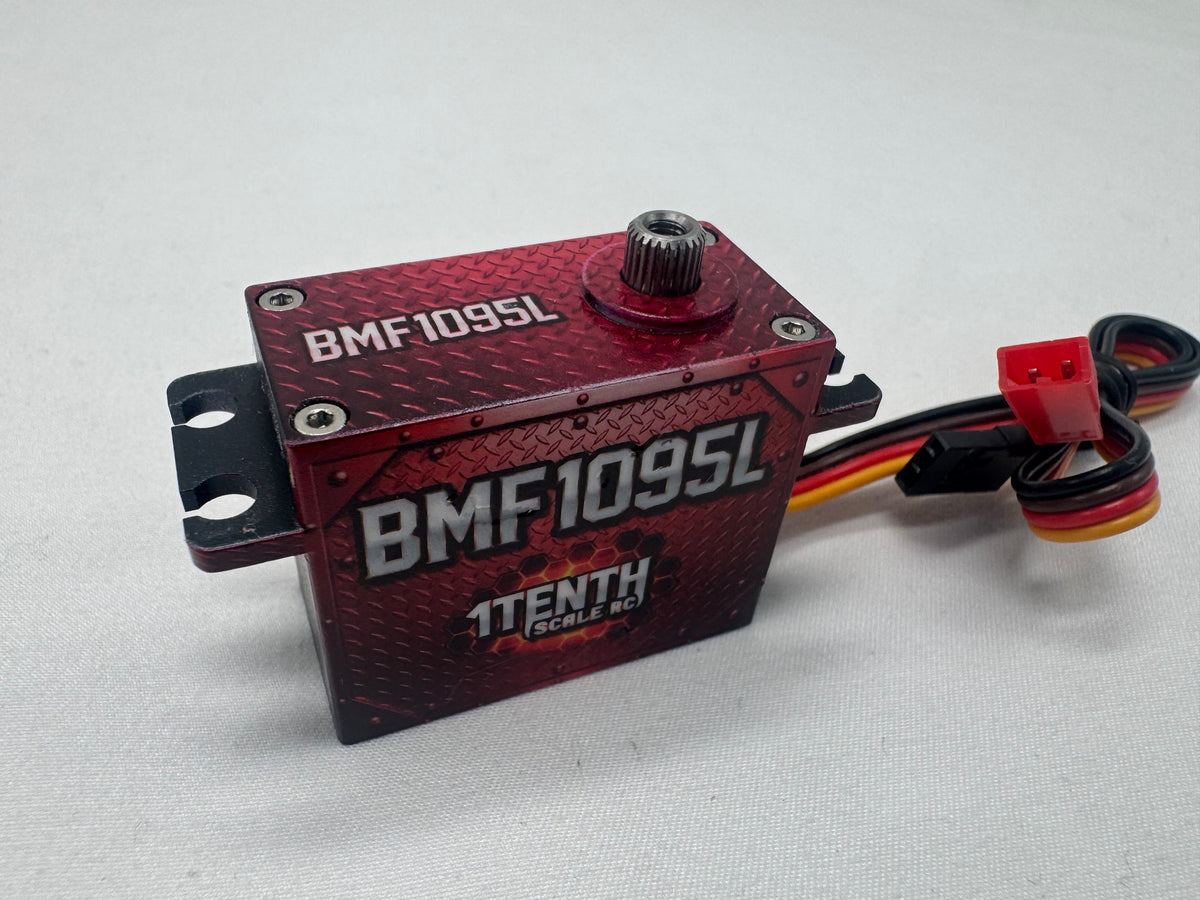

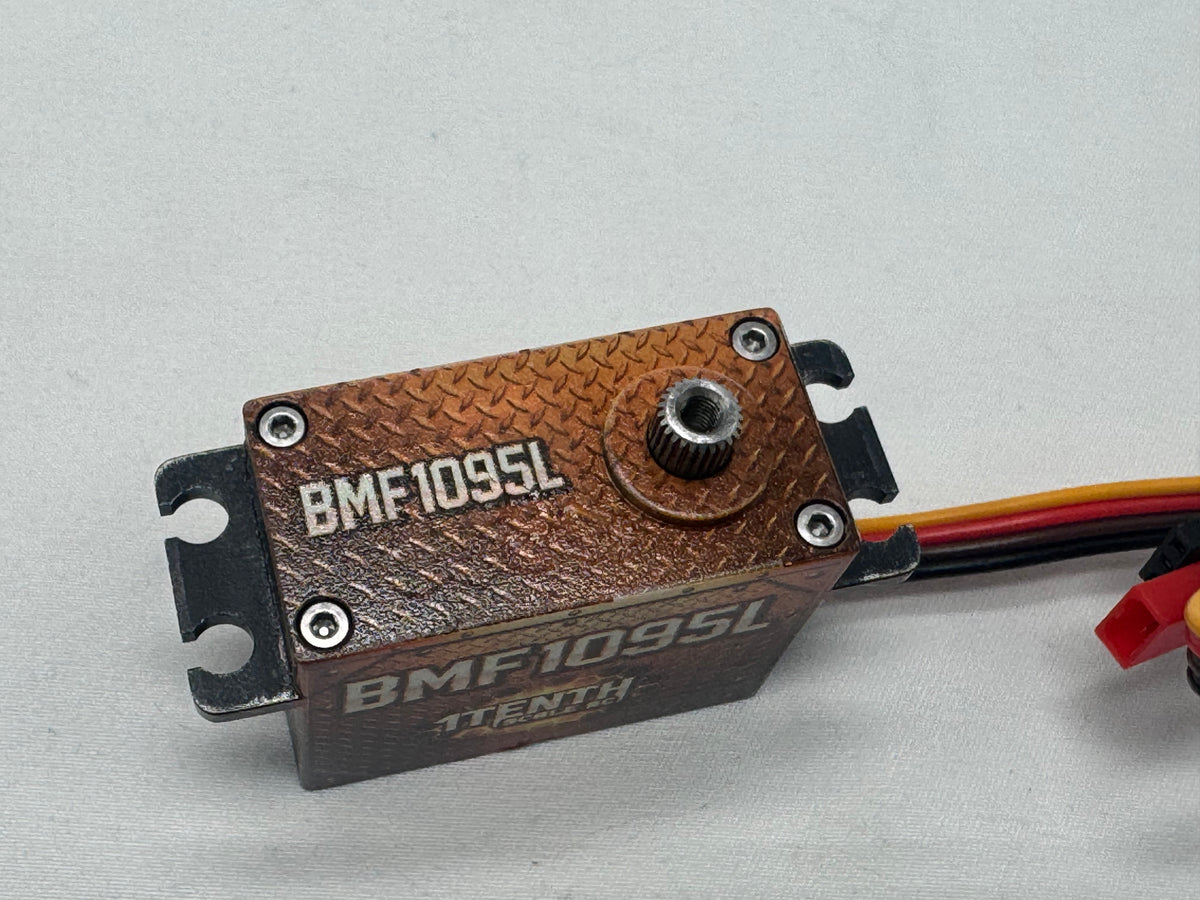

Graphics options are a UV paint that cures with adhesion similar to anodize. The servo is taken apart and ran through a multistep prep and coating process. There can be slight sizing, spacing, or color variance between servos and batches.
If your servo is BTA and drags low it will wear as the servo does. The rocks take aluminum away too. 90 Day warranty on chips, cracks, or lifting more than 2mmx3mm.
Servo must be powered from a battery and not the receiver. 16.8V max and overvolt may void warranty.
If you submarine your rigs for extended periods please be sure to remove bottom cap from servo and let it air dry.
